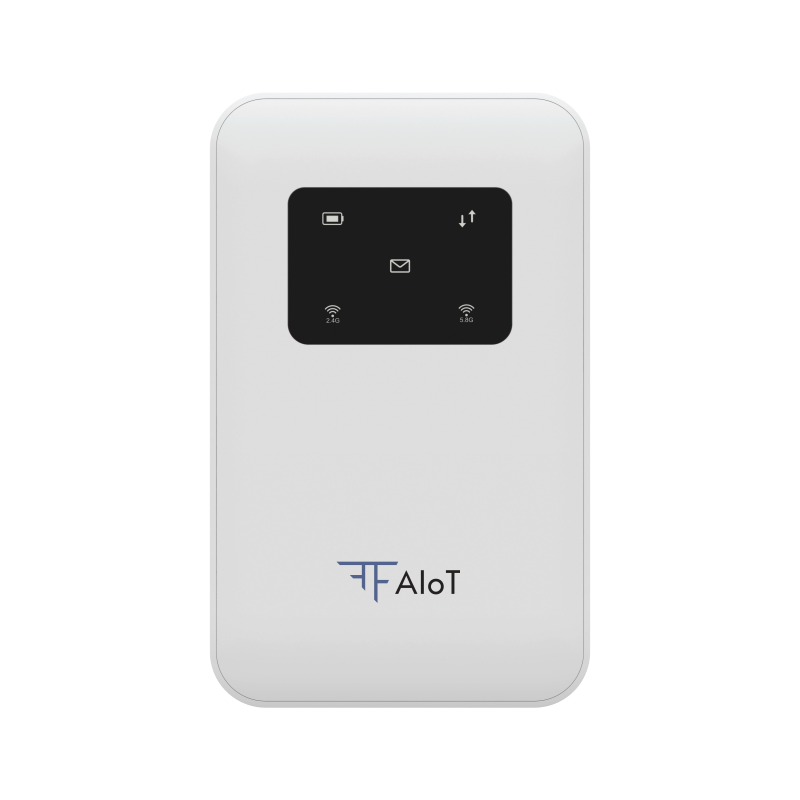

Portable 5G MiFi with Wi-Fi 6 MF101-U1
- Unisoc 5G Chipset, 4G Compatible
- Supports 5G SA & NSA Modes
- Omni-directional Antenna for Full Coverage
- 3000mAh Removable Battery, 6h Runtime
- Dual-band Wi-Fi 6
Global Network Coverage
Supports global 5G/LTE bands and NSA/SA modes for seamless, flexible connectivity across carriers.
Wi-Fi 6 Technology for Faster Internet
Supports 2.4/5GHz bands, up to AX600 speed rate.
Flexible SIM Options
1 physical SIM slot (4FF, 1.8V/3.0V) + eSIM, enabling flexible network switching.
VPN Client & Server Support
Supports VPN client/server (PPTP, GRE, L2TP, IPSEC) for secure remote access and data protection.
Long Battery Life
Built-in 3000mAh removable battery provides over 6 hours of operation.
Robust Device Management
Supports TR069 for remote setup, firmware updates, and real-time diagnostics like ping and trace.

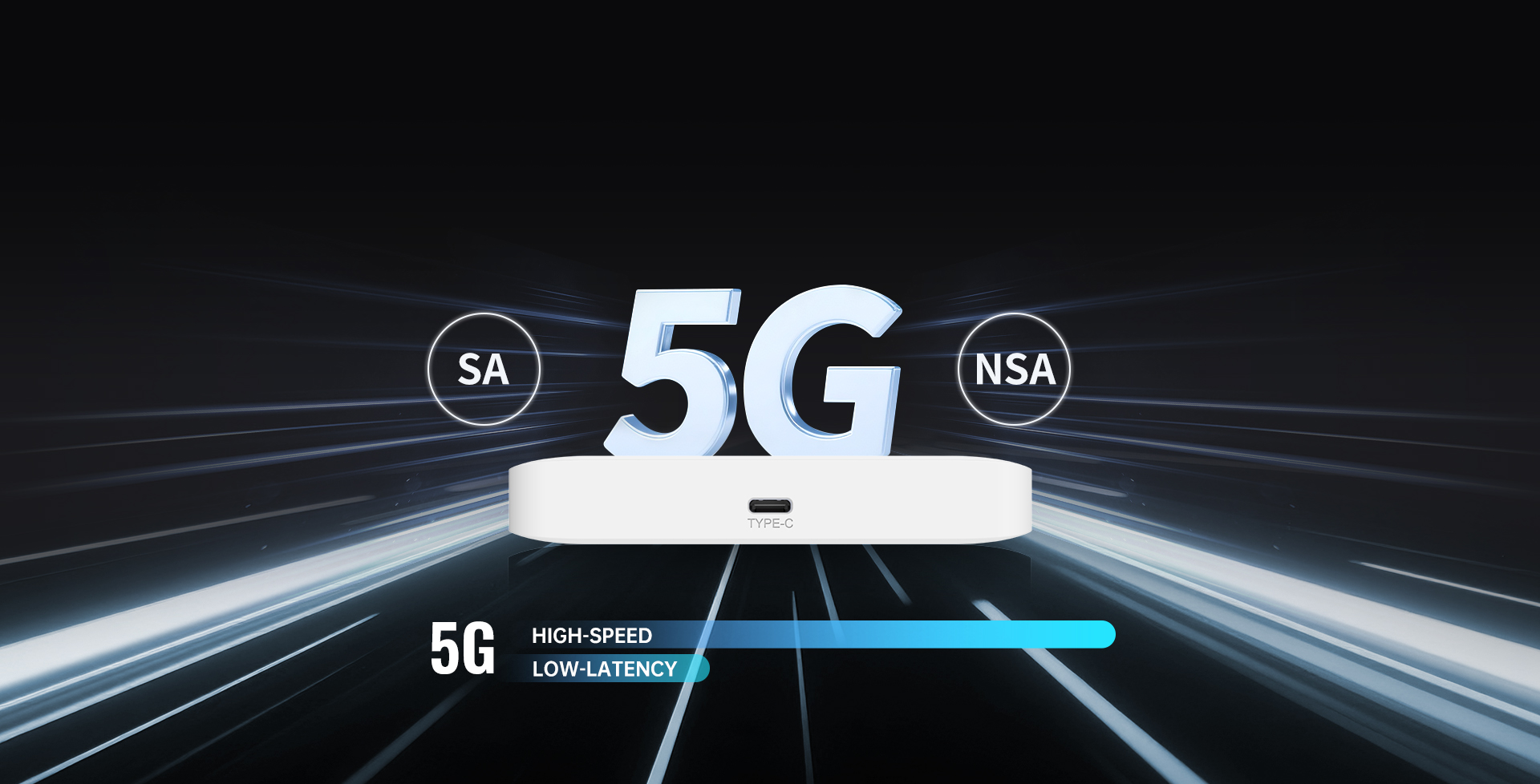

5G NR with NSA/SA Support
Supports 5G NR in both NSA and SA modes, delivering high-speed, low-latency wireless connectivity with broad operator compatibility.
Dual-Band Wi-Fi 6 Connectivity
Built-in dual-band 2.4GHz & 5GHz Wi-Fi, supports Wi-Fi 6 (AX600) for fast and stable multi-device connectivity.

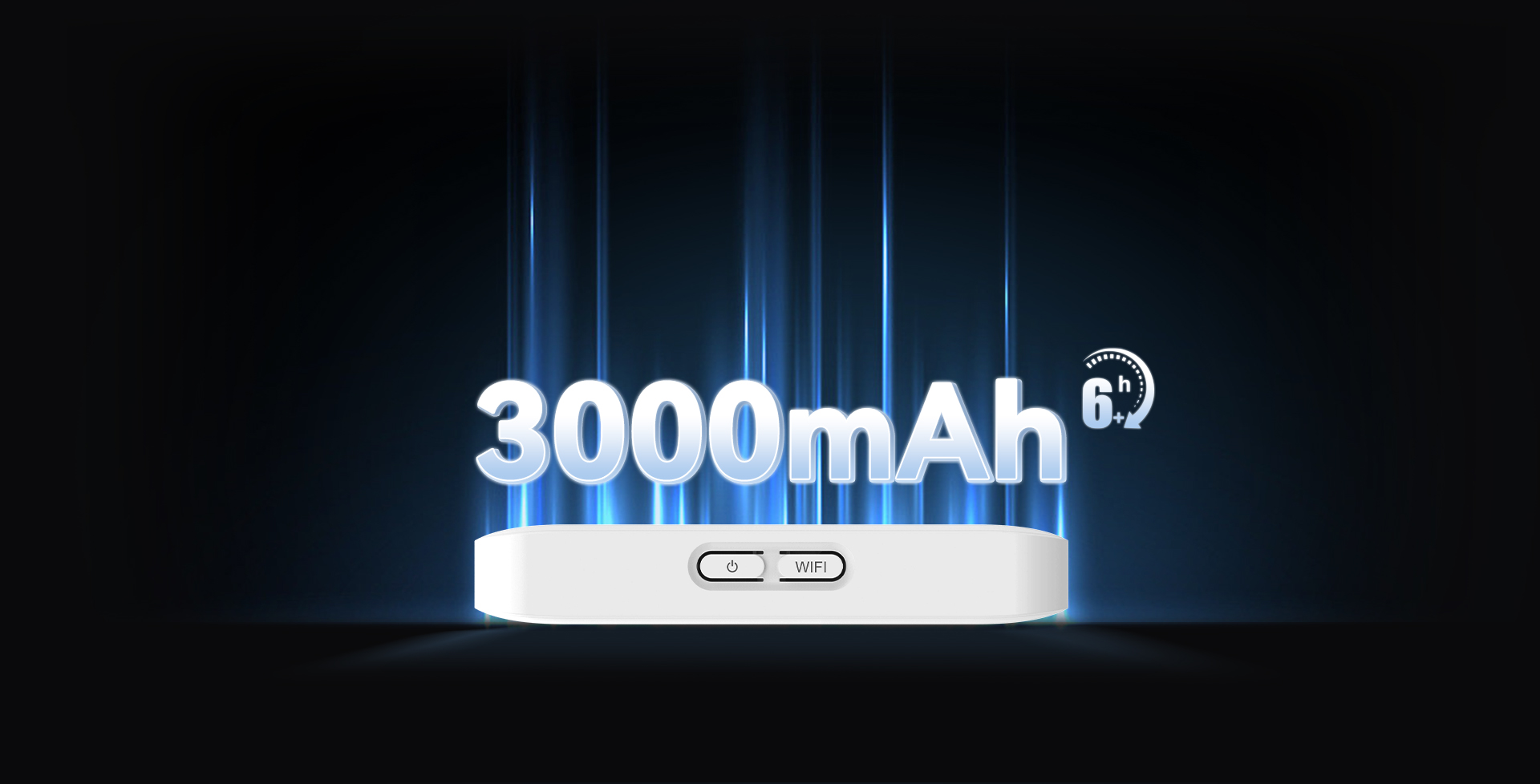

Removable 3000mAh Battery
Equipped with a removable 3000mAh lithium battery, providing over 6 hours of operation and flexible battery replacement.

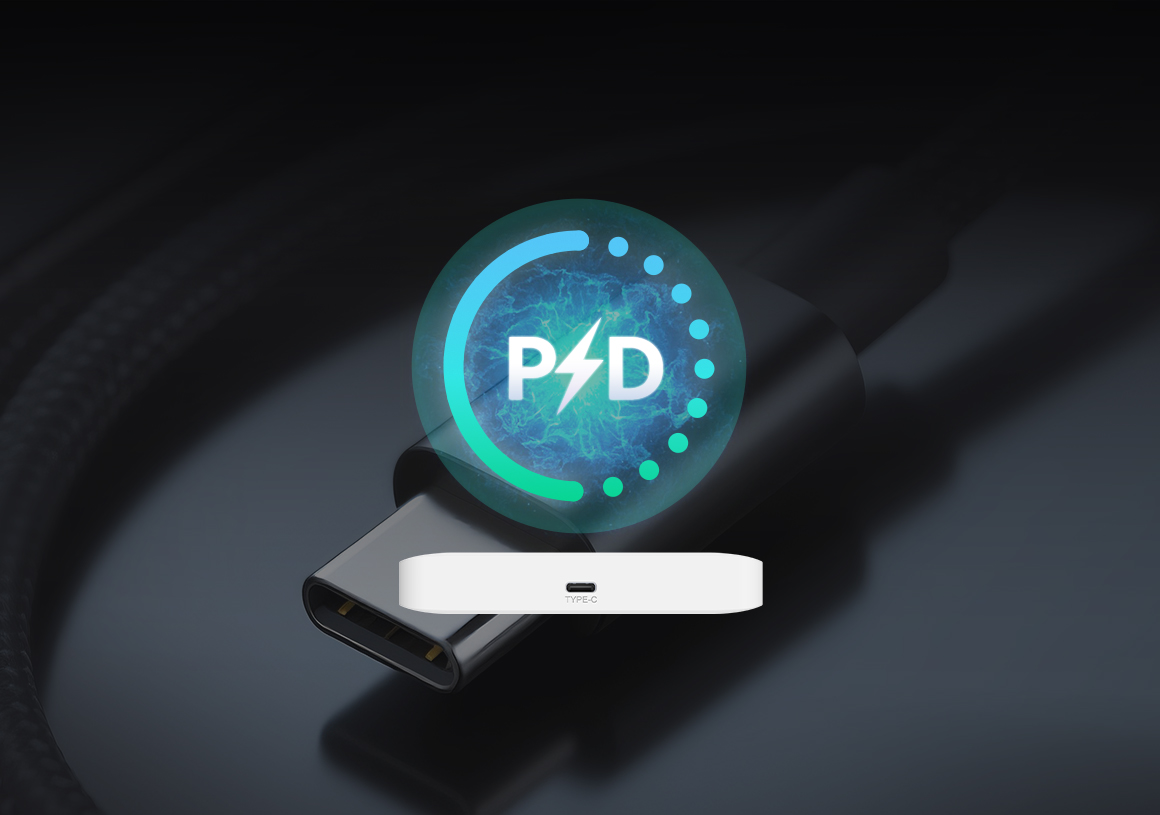

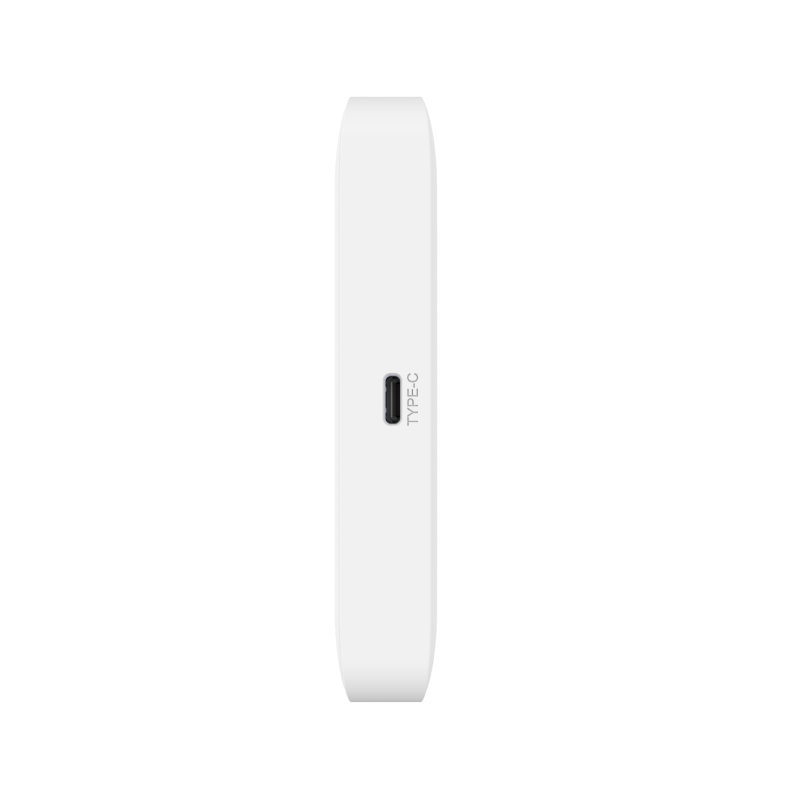

USB Type-C for Wired Access & Charging
Features a Type-C port for fast charging and PC wired access, enabling gigabit-level data transfer.
Compact & Lightweight Design
Compact and lightweight at 115×70×18mm, ideal for travel, remote work, and mobile networking needs.

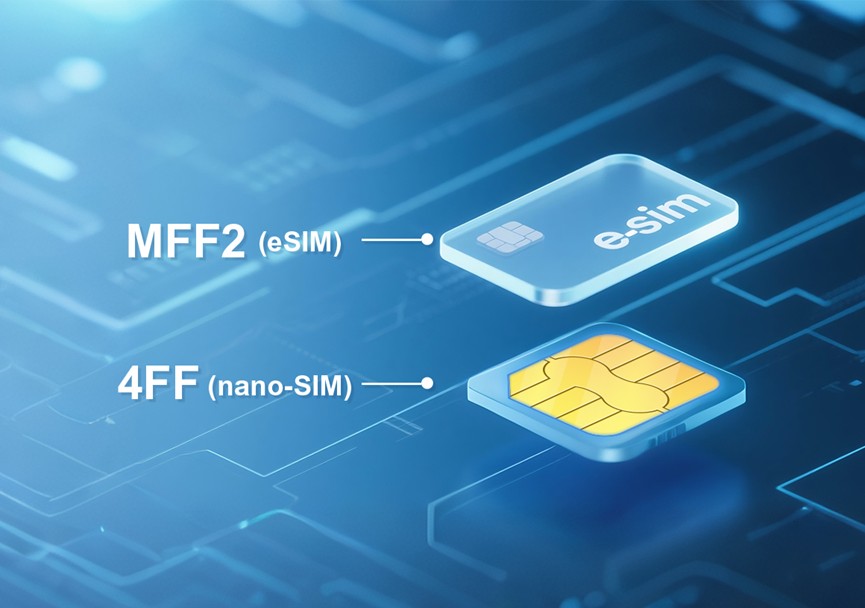

eSIM + Nano SIM for Flexible Network Access
Supports 1×Nano SIM card, with optional eSIM for flexible and convenient connectivity switching.
Multi-Protocol Remote Management
Supports remote management via TR069, TELNET, and HTTP/HTTPS protocols for efficient remote configuration and maintenance.
| Product | MF101-U1 |
| Chipset | Unisoc V510 |
| Flash | 2GB |
| DDR4 | 4GB |
| Network | 5G NR/LTE |
| Interfaces | 1 x TYPE-C |
| WIFI | 2.4GHz, 5GHz |
| SIM Card | 1.Nano SIM(4FF) Support 1.8V& 3.0V 2.ESIM |
| Battery | Removable 3000mAh lithium battery. 3.8V |
| Dimension | 115x70x18mm |
| Operating Temperature | 0 ~+45ºC |
| Storage Temperature | -20℃-70℃ |
| Cellular | |
| Frequency Band |
5G NR :
N1/N3/N5/N8/N28/N41/N78
LTE: B1/B3/B5/B8/B28/B34/B39/B40/B41 |
| Platform | Unisoc V510 |
| 3GPP | Release 15 |
| Theoretical Maximum Bandwidth |
5G NR:
2Gbps (DL)/500Mbps (UL)
LTE: 200Mbps (DL)/150Mbps (UL) |
| Interfaces | |
| TYPE-C | 1 × Type-C port for charging, debugging, and firmware upgrades. |
| SIM | 1 x Nano SIM Slot |
| Indicator | 1.Signal strength indicator 2.Wi-Fi 2.4G 3.Wi-Fi 5G 4.Battery level indicator 5.Message |
| NFC | Optional |
| Buttons |
|
| Hardware | |
| Chipset | Unisoc V510 |
| DDR4 | 4GB |
| Flash | 2GB |
| WIFI | |
| Frequency | 2.4GHz, 5GHz |
| Channel Bandwidth | 20MHz / 40MHz / 80MHz |
| WIFI Output Power | 14dBm±2dBm |
| Theoretical Maximum Bandwidth | AX600 |
| Power Supply | |
| Power Input | 5V/3A，9V/2A |
| Consumption | <10W |
| Battery | |
| Type | Removable lithium battery |
| Capacity | 3.8V / 3000mAh |
| Maximum Working Hours: | ≥6H,depending on the network |
| Certification | |
| CE | In Progress |
| UKCA | In Progress |
| FCC | In Progress |
| Physical Properties | |
| Dimensions | 115x70x18mm |
| Operating Temperature | 0~+45ºC |
| Storage Temperature | -20~+70ºC |
| Software | |
| Https/Http | Both |
| Account Management | Supports dual-role accounts for administrator and user, with different interfaces and permissions. |
| SIM Card Management | Supports PIN code management. · |
| Backup/Restore Configuration | Supports backup and restoration of current device settings. |
| Diagnostics | Supports exporting device operation logs. |
| Status Display | Shows network connection status. |
| PCI Lock | Support |
| VPN | L2TP, PPTP, GRE, IPSEC |
| TR069 | HTTP/HTTPS, Supports upload/download the ACS specified file, Support configure & queries parameters |
| Work Mode | NAT/ Router mode |
| Software Update | Web GUI update TR069 update |
