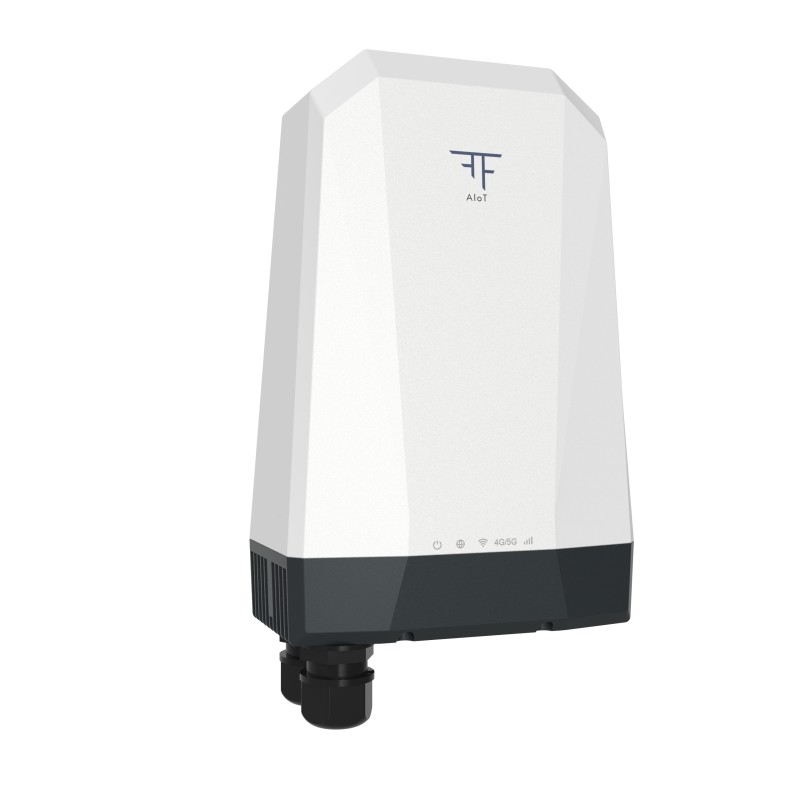

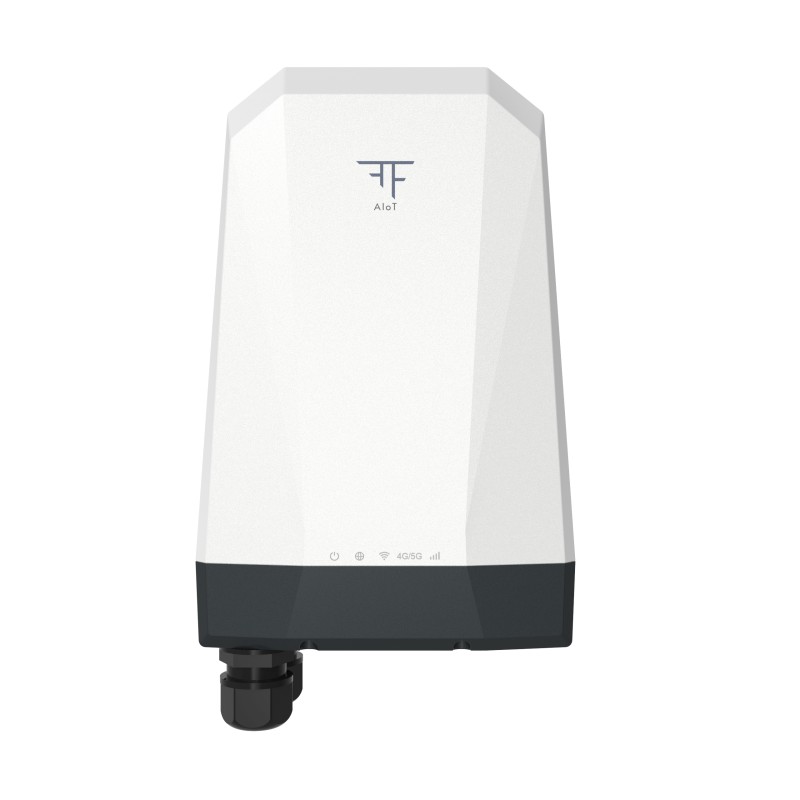

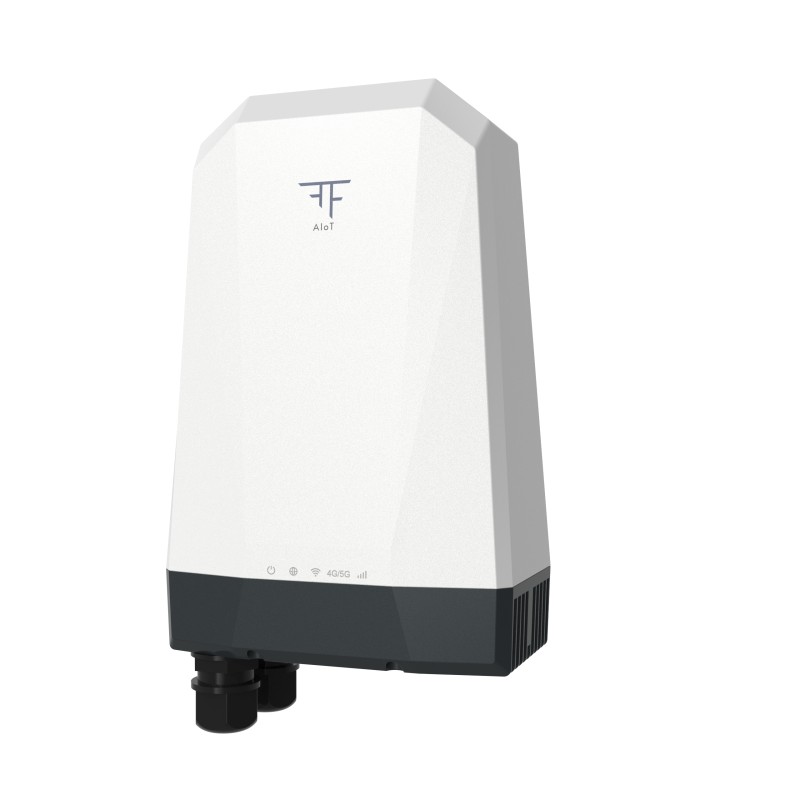

5G Outdoor Router with MTK750 FNB600

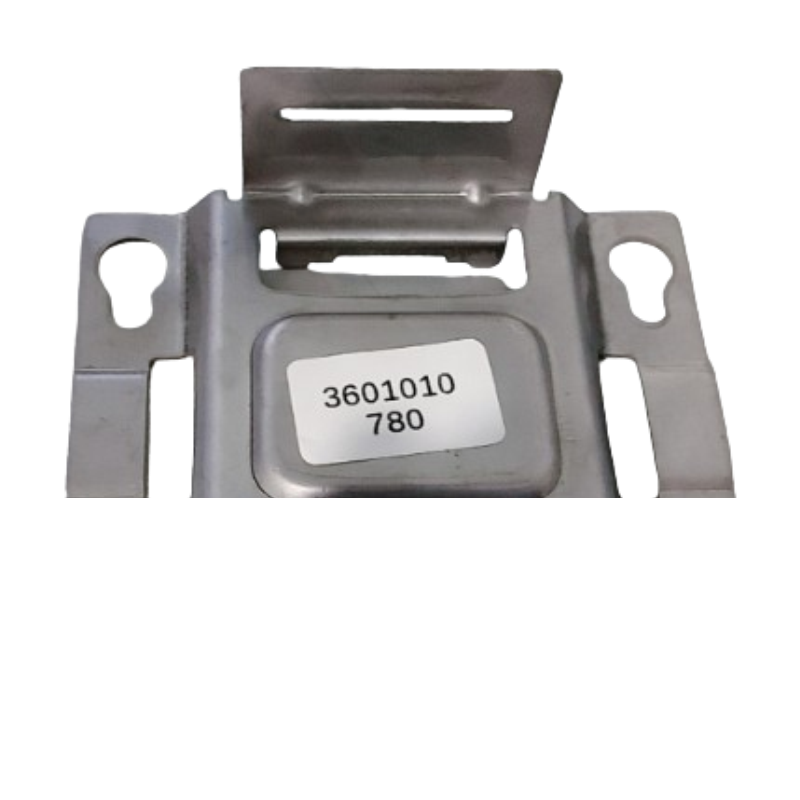

- Wall Mount & Din-rail
- Dual SIM
- IP67 Protection
- 2.5 GbE via Passive PoE
- Wireless Configuration (2.4G WIFI)
IP67-Rated for Dust and Water Resistance
Outdoor-rated, IP67 waterproof, metal cooling base ensures 24/7 stable performance under heavy loads.
Supports 5G NR (NSA & SA Modes)
Supports global 5G, providing high-speed, low-latency connectivity for diverse application scenarios.
Built-in 2.4G Wi-Fi for Local Configuration
Provides convenient on-site device setup via 2.4G Wi-Fi, eliminating the need for wired connection or pole climbing during installation.
Supports 2.5G Ethernet & Passive PoE
Offers high-speed 2.5G wired connectivity and supports Passive PoE for flexible power and data transmission via a single cable.
Dual SIM with Automatic Failover
Auto-switches to backup SIM to maintain uninterrupted connectivity during network failures.
Supports Remote Device Management
Supports remote cloud platforms for centralized monitoring, firmware upgrades, and troubleshooting.
High-Speed 5G Connectivity
Supports multiple 5G bands with real-world speeds up to 900Mbps, ideal for home broadband and industrial network applications.

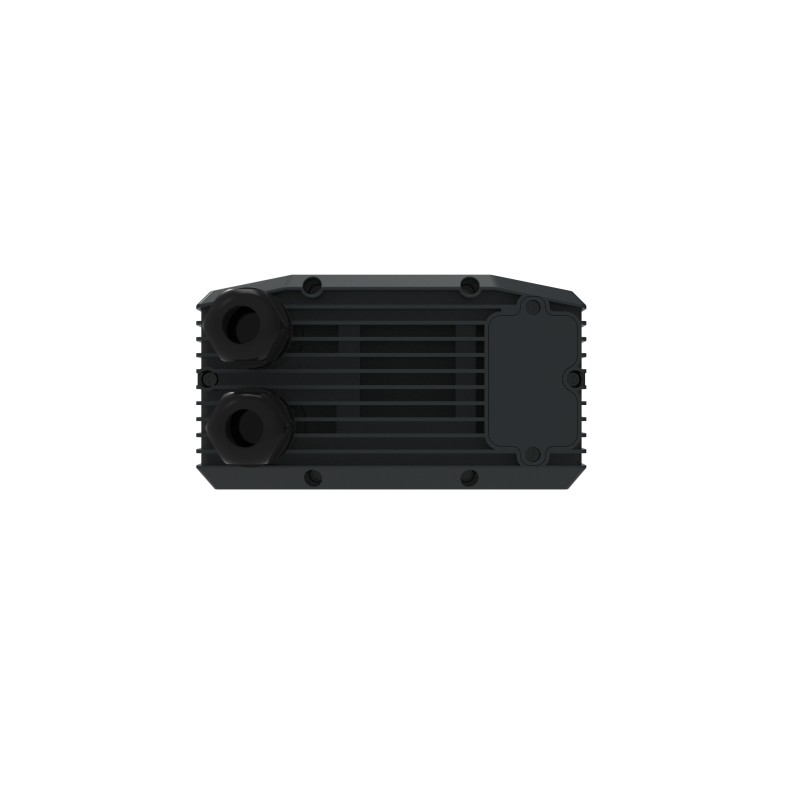

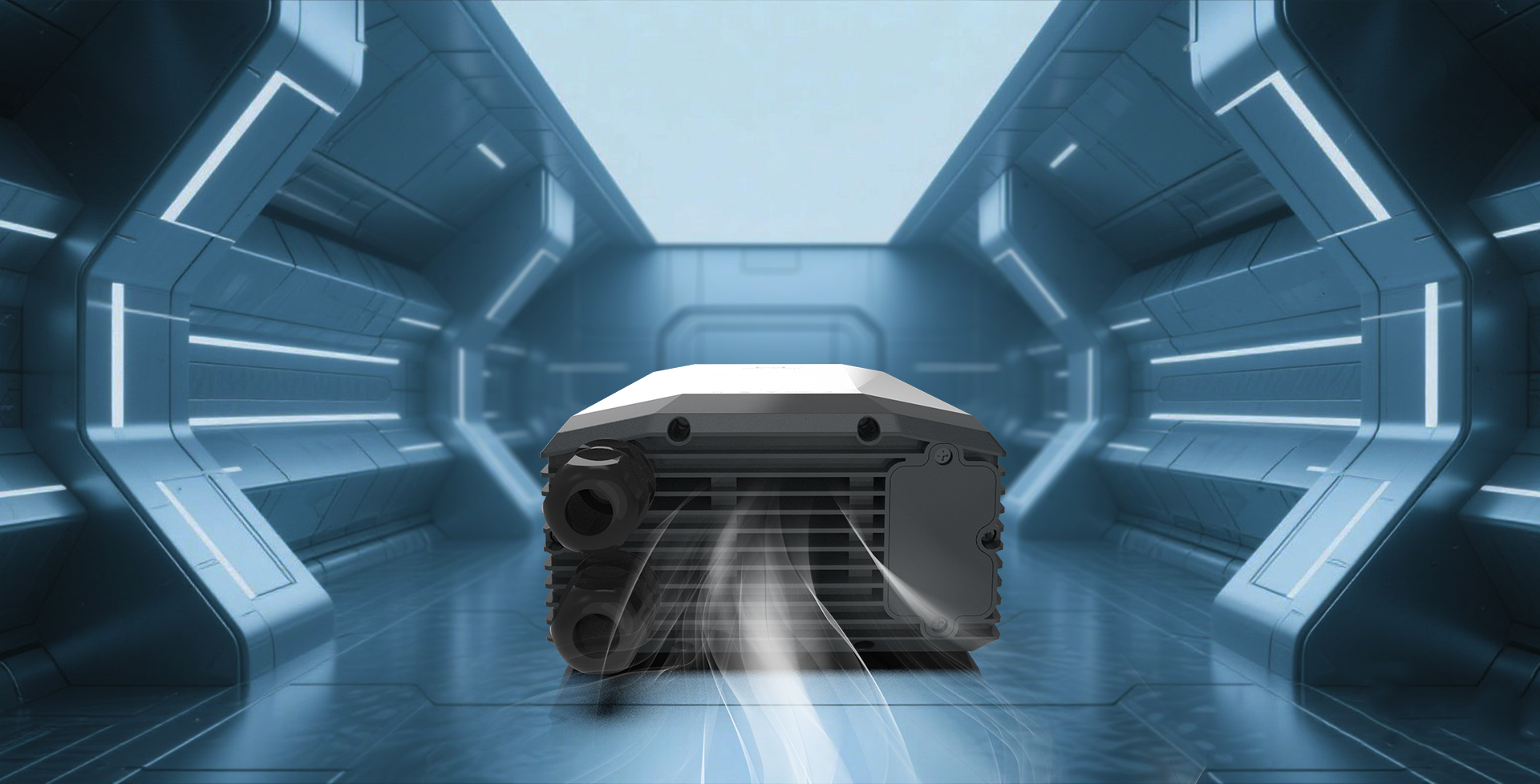

Efficient Heat Dissipation
Metal base quickly dissipates heat, ensuring stable 24/7 high-speed 5G performance and preventing overheating.

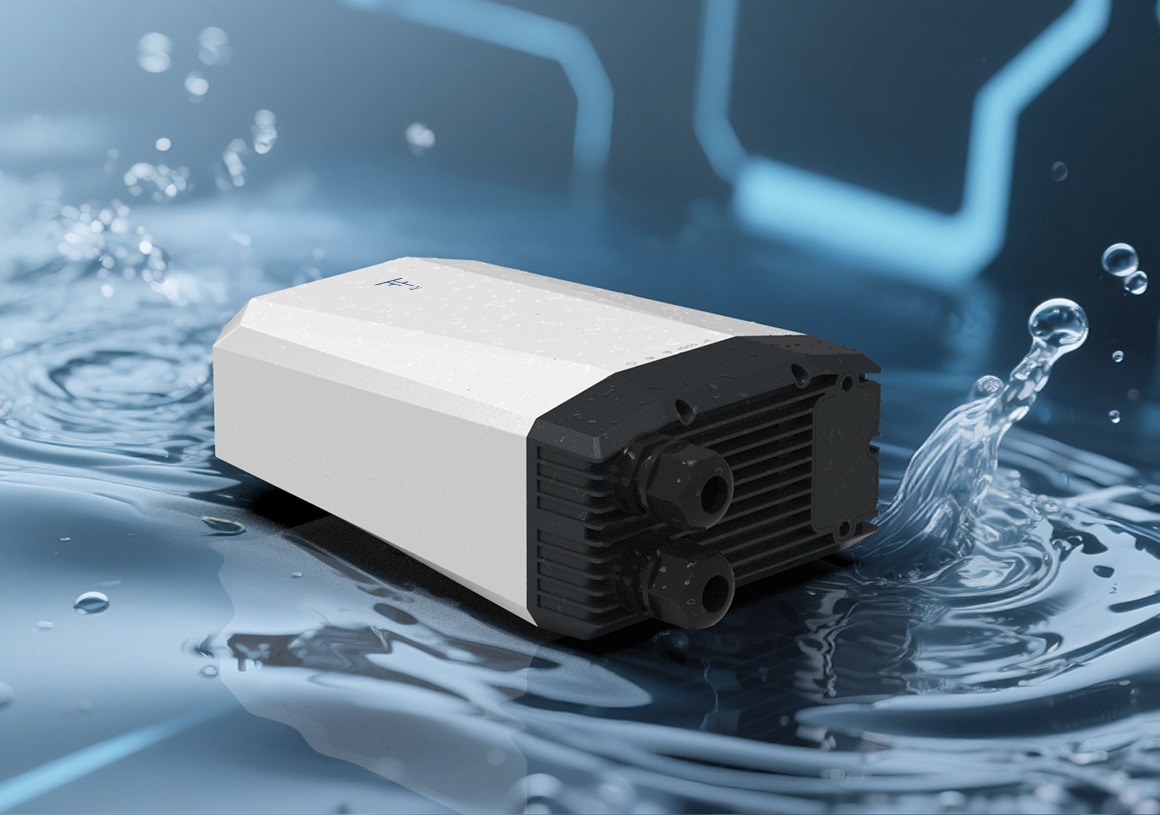

Rugged Outdoor Protection
IP67-rated for reliable and stable operation in harsh outdoor environments.

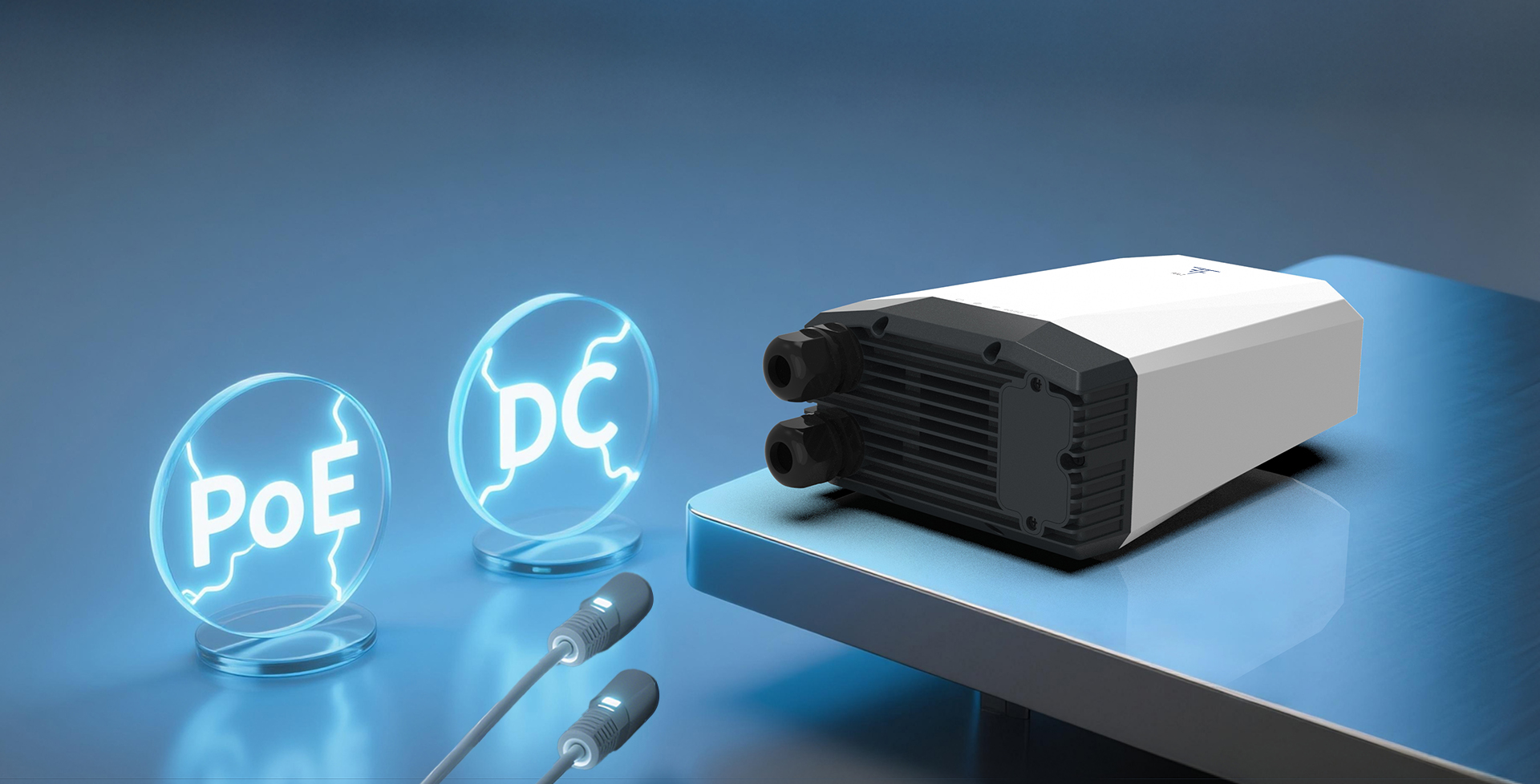

Dual Power Backup Design
Supports both PoE and DC input, ensuring flexible and reliable power supply for diverse deployment scenarios.

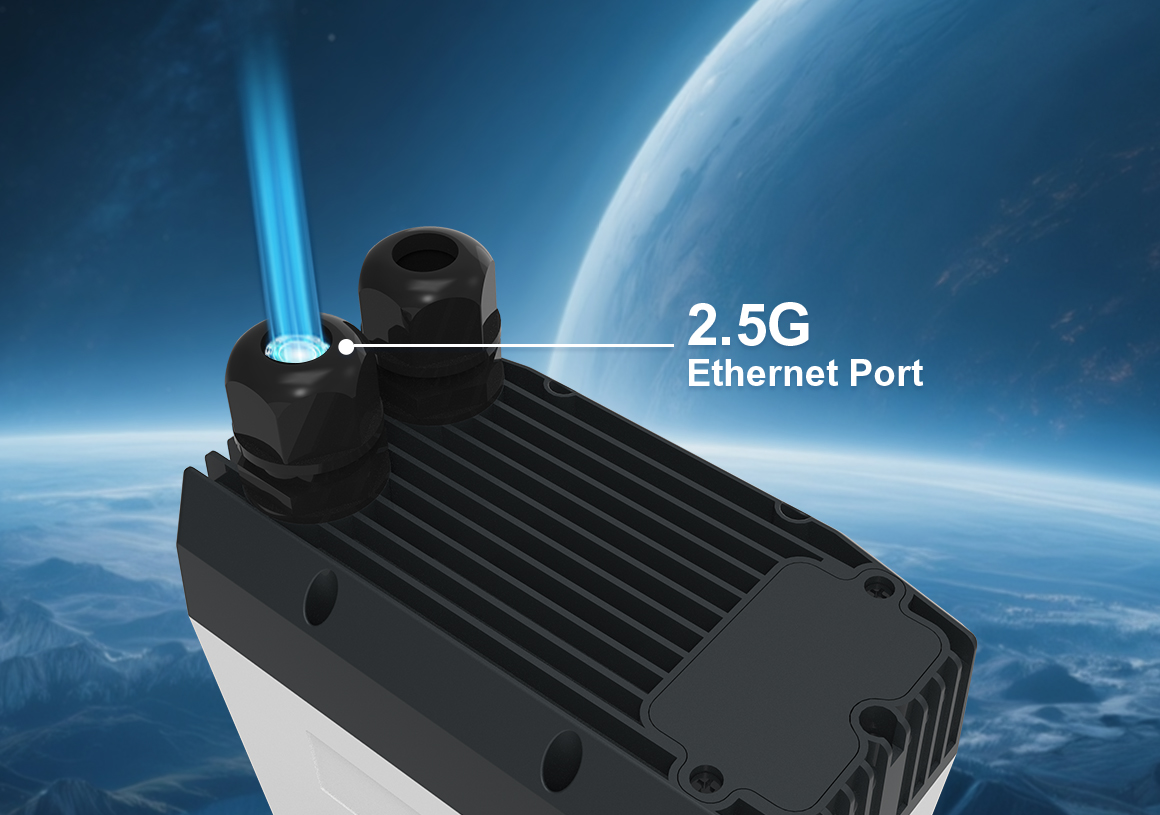

Ultra-Fast 2.5G Ethernet
Delivers blazing-fast 2.5G wired network performance for demanding applications

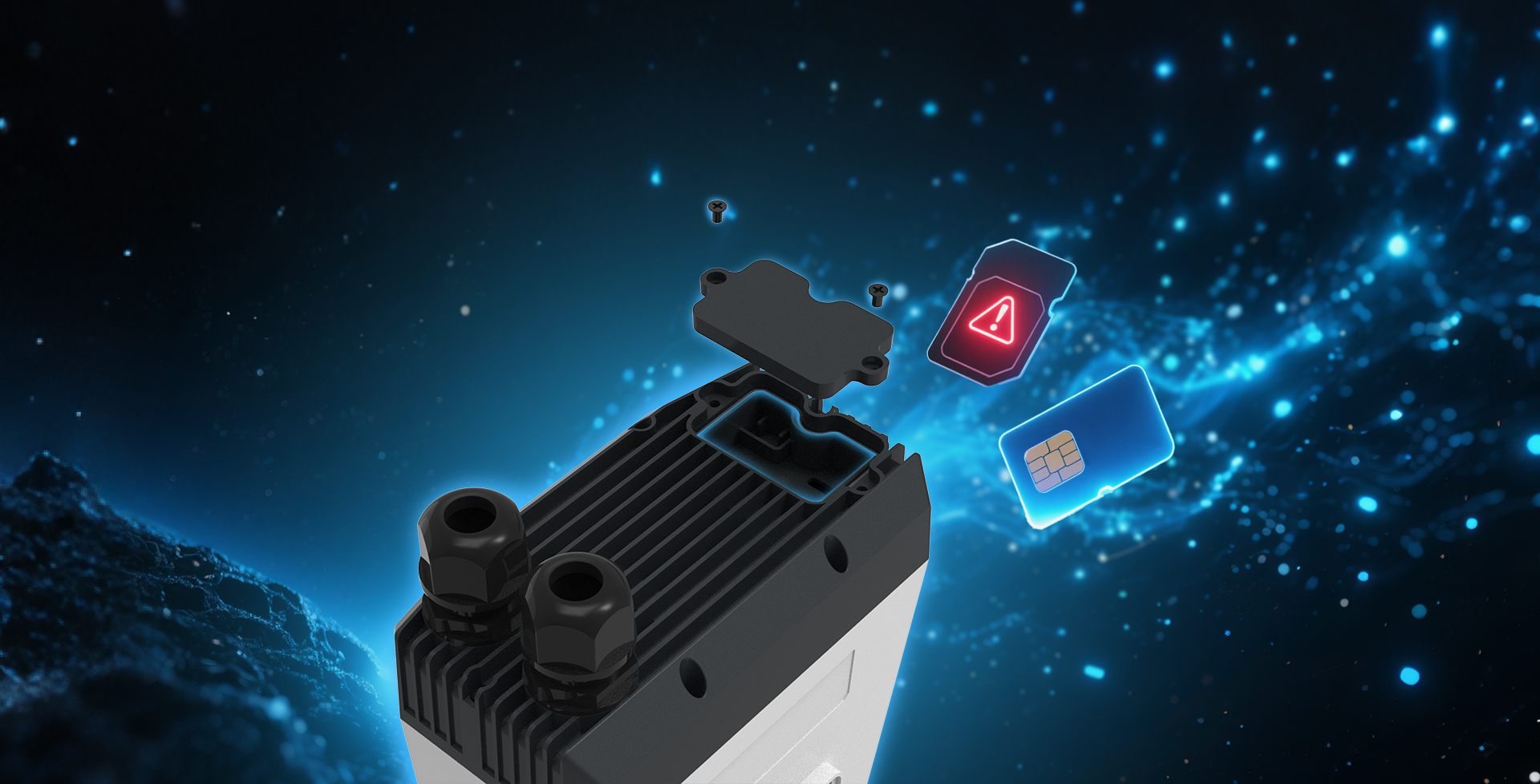

Dual SIM Failover
Primary and backup SIM slots with automatic switchover ensure continuous network connectivity during outages or failures.

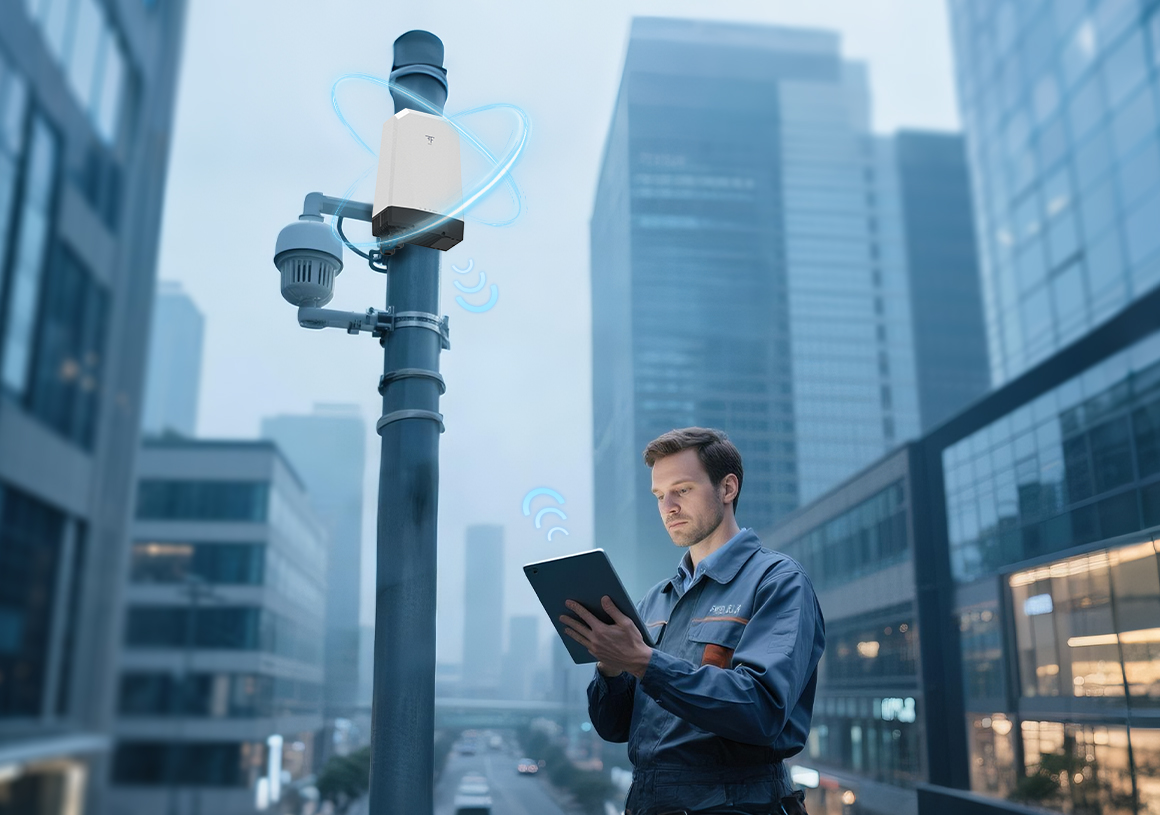

2.4G Wi-Fi Local Setup
Provides convenient on-site device setup via 2.4G Wi-Fi, eliminating the need for wired connection or pole climbing during installation.

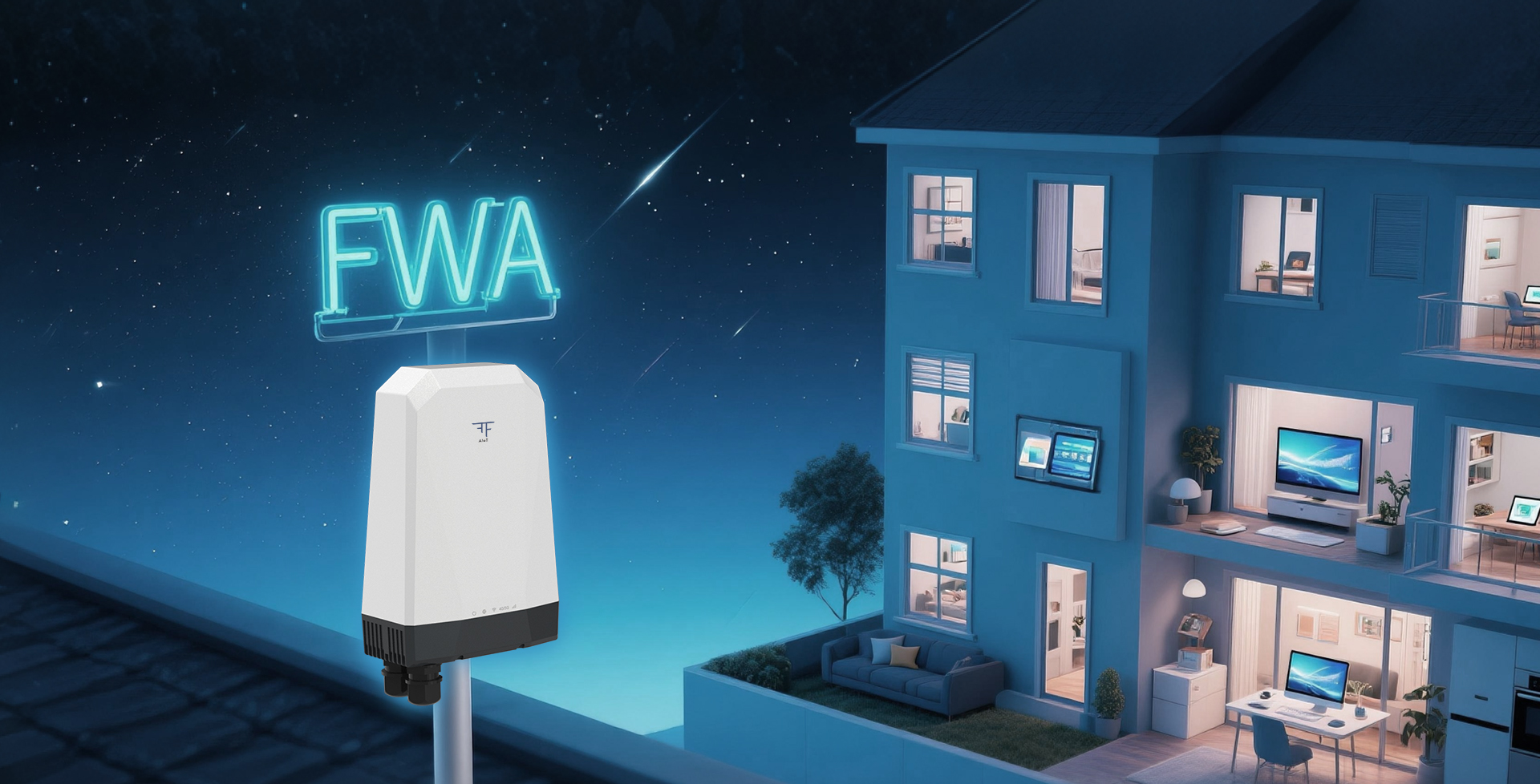

Application Versatility Across Industries
5G ODU delivers high-speed wireless connectivity for homes, factories, construction, surveillance, retail, and municipal applications.
| Product | FNB600-NA | FNB600-EAU |
| CPU | MTK T750, 2.0GHz, Quad-core | |
| DDR3 | 2GB | 1GB |
| Flash | 32GB | 1GB |
| Antenna | 4X4MIMO | |
| Ethernet Port | 1x2.5G | |
| WIFI | 2.4GHz (For Configuration) | |
| SIM Card | Dual SIM | |
| Protection Level | IP67 | |
| Dimension | 150x100x240mm | |
| Weight | ≦1kg | |
| Operating Temperature | -20~+60ºC | |
| Operating Humidity | 95% (No-condensing) | |
| Cellular | ||||
| Frequency Band | FNB600-NA | FNB600-EAU | ||
|
5G Sub-6: n2/ 5/ 7/ 12/ 14/ 25/ 30/ 41/ 48/ 66/ 71/ 77/ 78
LTE FDD: B2/ 4/ 5/ 7/ 12/ 13/ 14/ 17/ 25/ 26/ 29/ 30/ 66/ 71 LTE TDD: B41/ 48 LAA: B46 WCDMA: B2/ 4/ 5 |
5G NR Sub-6: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 71/ 77/ 78/ 79
LTE FDD: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 71 LTE TDD: B38/ 40/ 41/ 42/ 3 UMTS/HSPA+: B1/ 5/ 8 |
|||
| Platform | MTK T750 | |||
| 3GPP | Release 15/ Release 16 | |||
| Theoretical Maximum Bandwidth |
5G NR Sub-6：
DL: 4.67 Gbps，UL: 1.25 Gbps
LTE： DL: 1.6 Gbps，UL: 211 Mbps |
5G Sub-6 SA:
DL 4.67Gbps, UL 1.25Gbps
5G Sub-6 NSA:
DL 4.47Gbps, UL 730Mbps
LTE:
DL 1.6Gbps (CAT19), UL 211Mbps (CAT18)
UMTS/HSPA+: DL UMTS: 384kbps, UL 384 kbps DC-HSPA+: DL 42 Mbps (CAT24), UL 11.5Mbps (CAT7) |
||
| Interfaces | ||||
| Ethernet (LAN) | 1 x 2.5G Ethernet (RJ45), auto MDI/MDIX | |||
| Indicator | Power, Internet, WIFI, 5G/4G, Signal | |||
| SIM Card | 2 x Nano-SIM interface (1 Main & 1 Backup) | |||
| USB | Type C 2.0 | |||
| Reset Button | Through this button, the parameter configuration can be restored to the factory value | |||
| Hardware | ||||
| CPU | MTK T750, 2.0GHz, Quad-core | |||
| DDR3 | 2GB | 1GB | ||
| Flash | 32GB | 1GB | ||
| WIFI | ||||
| WIFI Protocol | IEEE802.11 b/g/n | |||
| Frequency | 2.4GHz (For Configuration Used Only) | |||
| Power Supply | ||||
| Standard | POE: 802.3af / DC: 12V 1.5A | |||
| Certification | ||||
| CE | Completed | |||
| UKCA | Completed | |||
| FCC | In Progress | |||
| Physical Properties | ||||
| Shell | PC+ABS Material Cover with Metal Base, IP67*（Device only, test without ethernet cable & power cable. Loose ethernet cables may affect waterproof capacity.） | |||
| Dimensions | 150x100x240mm | |||
| Weight | ≦1kg | |||
| Operating Temperature | -20~+60ºC | |||
| Storage Temperature | -40~+85ºC | |||
| Humidity | 95% (No-condensing) | |||
| Software | ||||
| Operating System | OpenWrt base | |||
| Mobile Setting | Include 'Lock Network' to secure preferred bands, preventing unwanted frequency switching issues. | |||
| WLAN Setting | Include SSID, security, password, connection limit, and broadcast hiding in basic options. | |||
| Dual SIM Setting | SIM priority: default is “SIM1 First” under Network Settings > Dual SIM. | |||
| Ethernet | IPV4, IPV6 | |||
| Device List | Show all the connected device information | |||
| Traffic Statistics | Mobile-only traffic monitoring shows daily/monthly usage and supports data limit alerts and restrictions setup. | |||
| Statistics Report | Monthly reports graph daily ODU traffic, helping users analyze data by month and SIM selection. | |||
| Parental Control | Parental control sets internet time, encouraging healthy habits for minors. | |||
| QOS | QoS limits mobile bandwidth; defaults to "Normal" if no advanced settings are configured. | |||
| QOS Advance | QoS Advanced Settings prioritize devices via MAC/IP for optimized, user-defined network performance. | |||
| PIN Management | Enables security of PIN management, enhancing device access control and network security. | |||
| SMS | SMS Management | |||
| Firmware/Configuration | WEB UI, Factory settings reset, Cloud Platform | |||
