5G MIFI with Unisoc V510 MF100-U1

Request a Free Quote

5G High-Speed Performance
Dual-Band Wi-Fi 6
Flexible Network Configuration
Long Battery Life
Fast Charging

5G Dual-Mode Connectivity

Supports NSA/SA, NR MIMO 1T4R, gigabit download, covering major 5G bands including optional N79.

Dual-Band Wi-Fi

Supports 2.4G/5G, Wi-Fi 6, AX600, connects up to 12 devices.

Comprehensive Network Protocols

Supports NAT, DHCP, firewall, VPN, and static routing for flexible network deployment.

Fast Charging

Supports PD fast charging, full charge in under 7 hours.

Large-Capacity Battery

Equipped with 9000mAh detachable battery, provides over 12 hours of operation.

5G Outdoor Waterproof Router with MTK T750 (FNB600)-2 (6)

Device Management

Enables configuration backup/restore, system log export, and remote management (TR069 ACS).

Full-Band 5G High-Speed

Supports NSA/SA dual-mode networking, NR MIMO 1T4R, gigabit-class download speeds, and wide coverage of major 5G frequency bands, including optional N79 for enhanced compatibility.

Dual-Band Wi-Fi 6

Utilizes AIC8800D80 solution, supports 2.4G/5G dual-band single-stream Wi-Fi 6 with AX600 speed, enabling stable connections for up to 12 devices simultaneously with low latency.

Long-Lasting Detachable Battery

Equipped with a 9000mAh detachable battery, delivers over 12 hours of continuous operation for reliable, extended use in various scenarios.

Efficient PD Fast Charging

Supports PD fast charging technology, enabling a full battery recharge in under 7 hours for improved uptime and operational efficiency in demanding environments.

Compact and User-Friendly Design

Slim 155×78×17mm design with lightweight construction, making it easy to carry for on-the-go use.

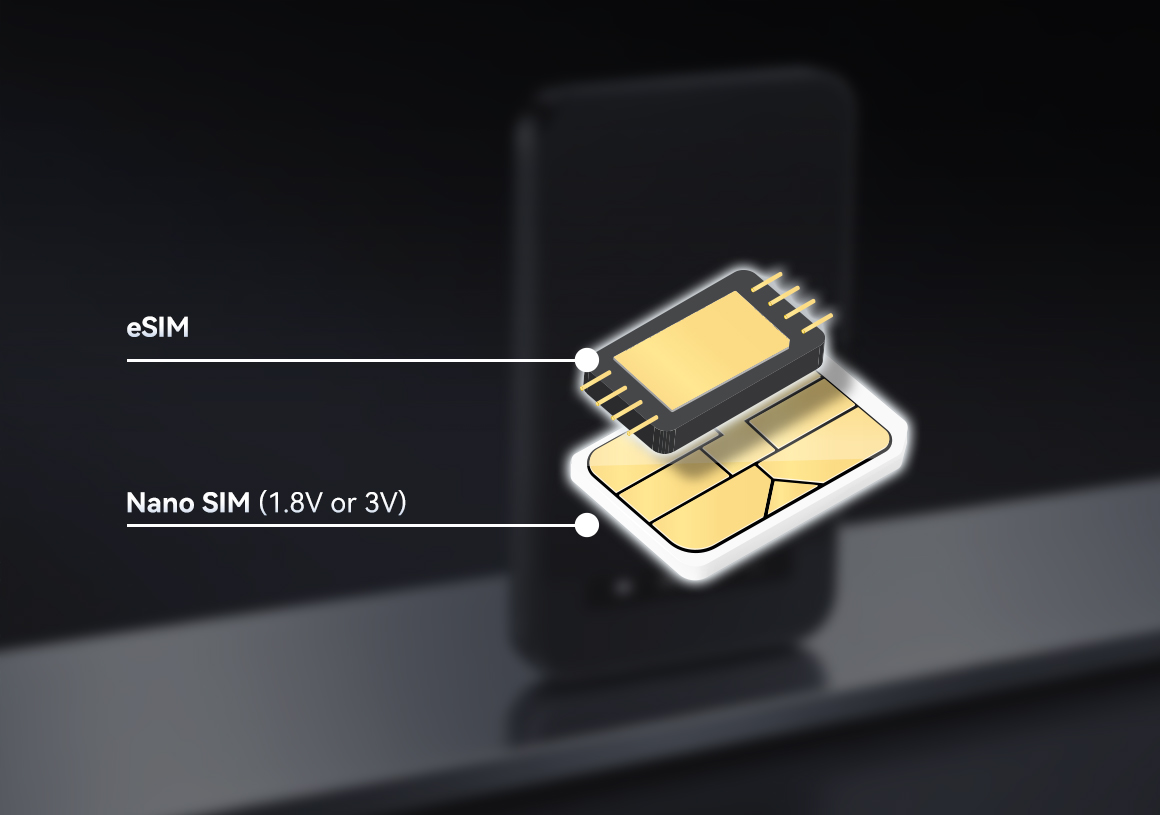

Dual SIM Flexibility

Supports one Nano SIM (1.8V or 3V) and two eSIMs, offering versatile network options, seamless carrier switching, and enhanced adaptability for various deployment scenarios.

Specifications

Other Parameters

Download

Photos

Product	MF100-U1
Chipset	Unisoc V510
ROM	4GB
Flash	2GB
Antenna	1T4R
Interfaces	1 x TYPE-C
WIFI	2.4GHz, 5GHz
SIM Card	1 * Nano(1.8V or 3V) 2 * eSIM
Battery	Built-in 3.85V/9000mAh removable rechargeable lithium battery
Dimension	155x78x17mm
Operating Temperature	0~+45ºC
Operating Humidity	5% ~ 95%

Cellular
Frequency Band	5G NR : N1/3/7/8/28/40/41(38)/77/78/79（Optional） LTE: B1/2/3/5/7/8/20/28/34/38/39/40/41
Platform	Unisoc V510
3GPP	Release 15. Release 14
Theoretical Maximum Bandwidth	5G NR_: 2Gbps (DL)/500Mbps (UL) LTE: 600Mbps (DL)/150Mbps (UL)
Interfaces

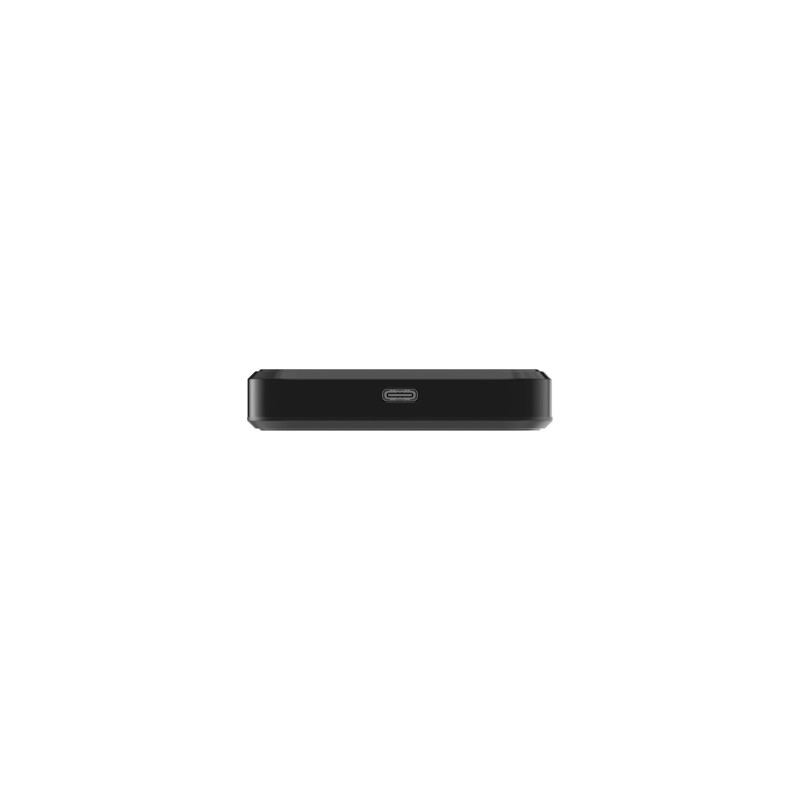

TYPE-C	1 × Type-C port for charging, debugging, and firmware upgrades
SIM	1 x Nano (1.8V or 3V) 2 x eSIM

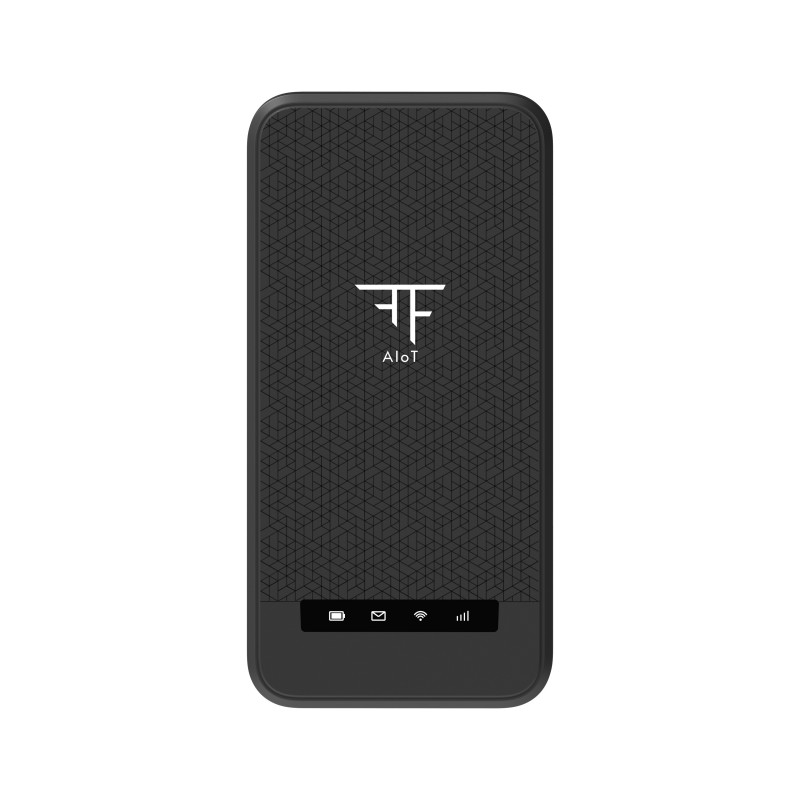

Indicator	1.Signal Strength Indicator 2. 2.4G Wi-Fi Indicator 3. 5G Wi-Fi Indicator 4. Battery Indicator

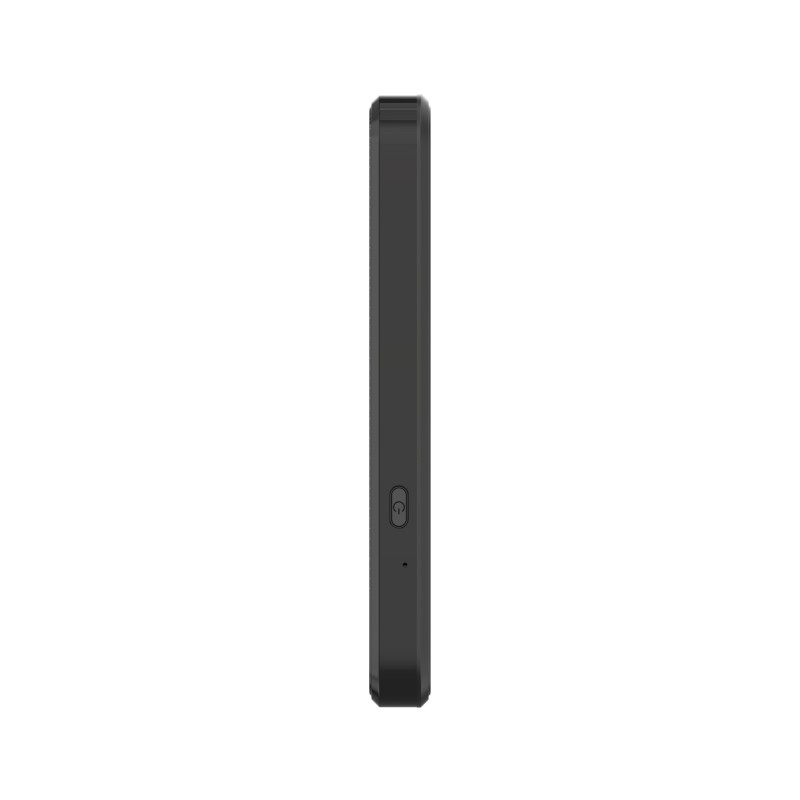

Button	Power button: short press to wake device (turn lights on/off), double press to switch Wi-Fi, long press 3 seconds to power on/off.
Hardware
Chipset	Unisoc V510
ROM	4GB
Flash	2GB
WIFI
Frequency	2.4GHz, 5GHz (DBSC)
Channel Bandwidth	2.4G: 20MHz / 40MHz 5G: 20MHz / 40MHz / 80MHz
WIFI Output Power	2.4G: 12dBm±2dBm; 5G: 12dBm±2dBm;
Theoretical Maximum Bandwidth	AX600
Power Supply
Protocol	Support PD fast charging protocol
Consumption	<10W
Battery
Type	Removable rechargeable lithium-ion battery
Capacity	3.85V / 9000mAh
Maximum Working Hours:	≥12H, depending on the network
Certification
CE	In Progress
UKCA	In Progress
FCC	In Progress
Physical Properties
Dimensions	155x78x17mm
Operating Temperature	0~+45ºC
Storage Temperature	-20~+70ºC
Humidity	95% (No-condensing)
Software
Https/Http	Both
Account Management	Supports admin/user accounts with distinct interfaces and content.
Diagnostics	Supports exporting device operation logs
IPv6	Dual stack IPv6/IPv4
Cell Lock	Supports cell locking
SIM Lock	Supports SIM card locking
Routing Mode	Supports NAT/Router mode
LAN	L2TP, PPTP, GRE, IPSEC
TR069	Supports ACS file export, configuration download, parameter query/configuration, and remote firmware upgrade.
System Log	Supports exporting system operation logs to PC
Software Update	Web GUI update TR069 update
