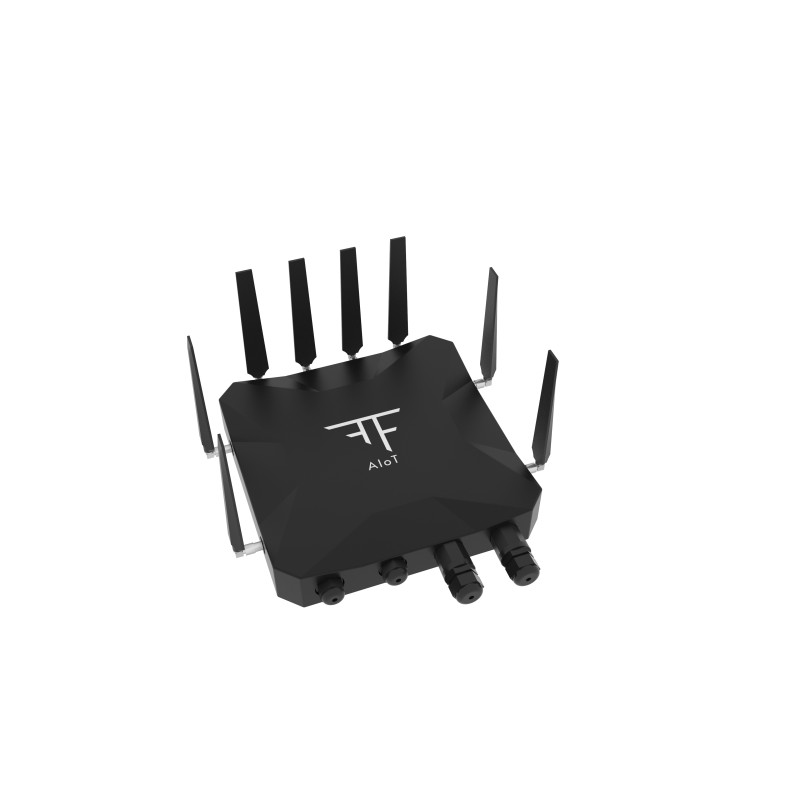

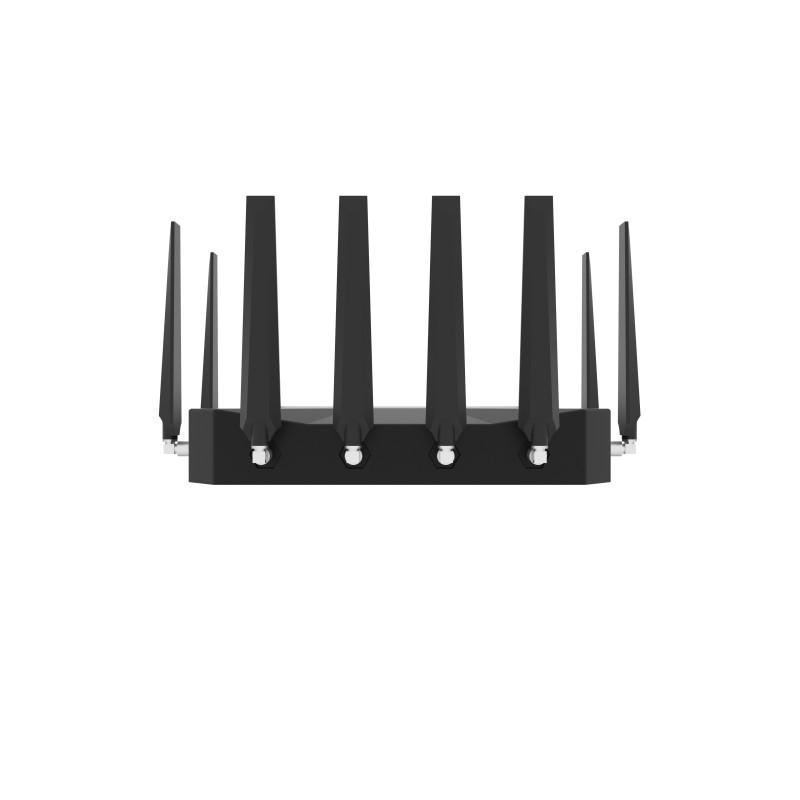

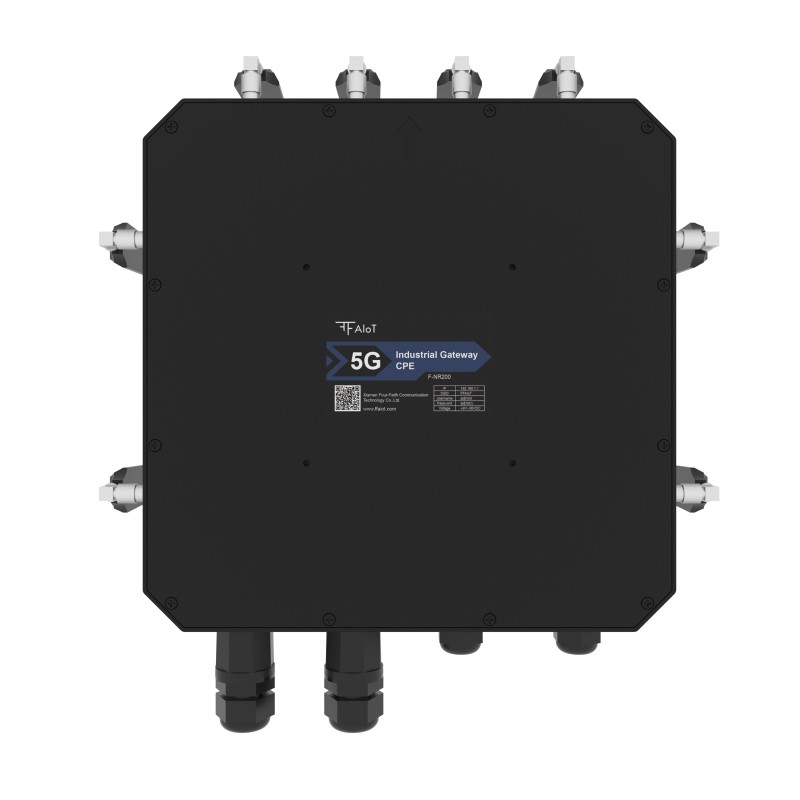

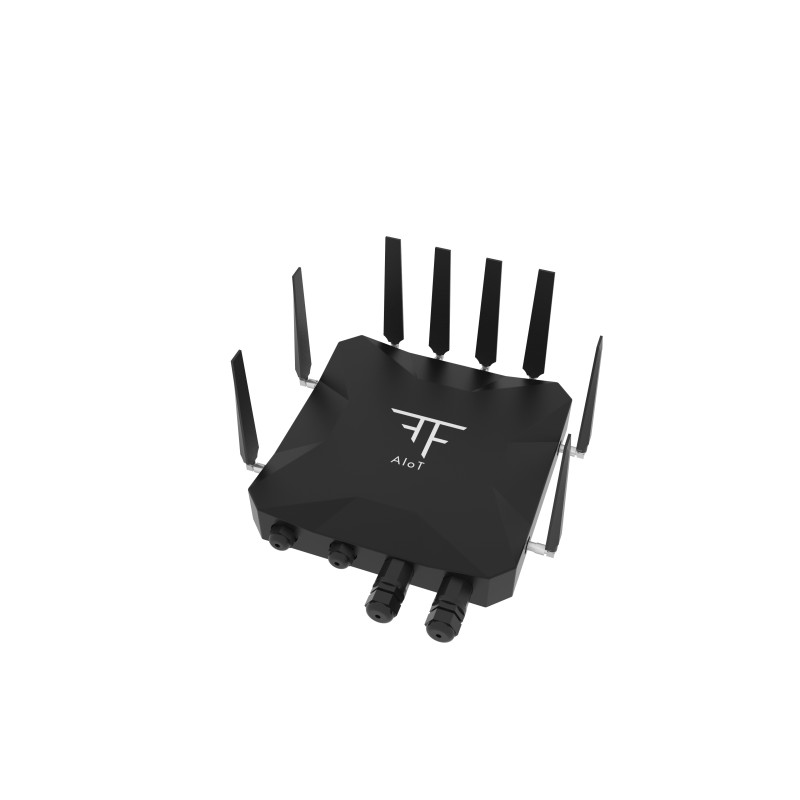

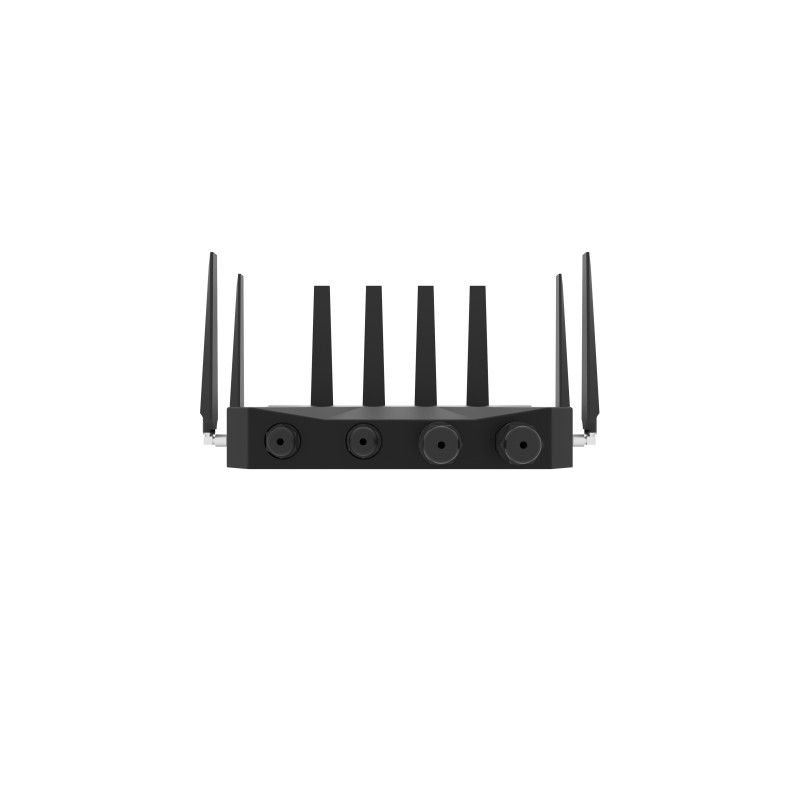

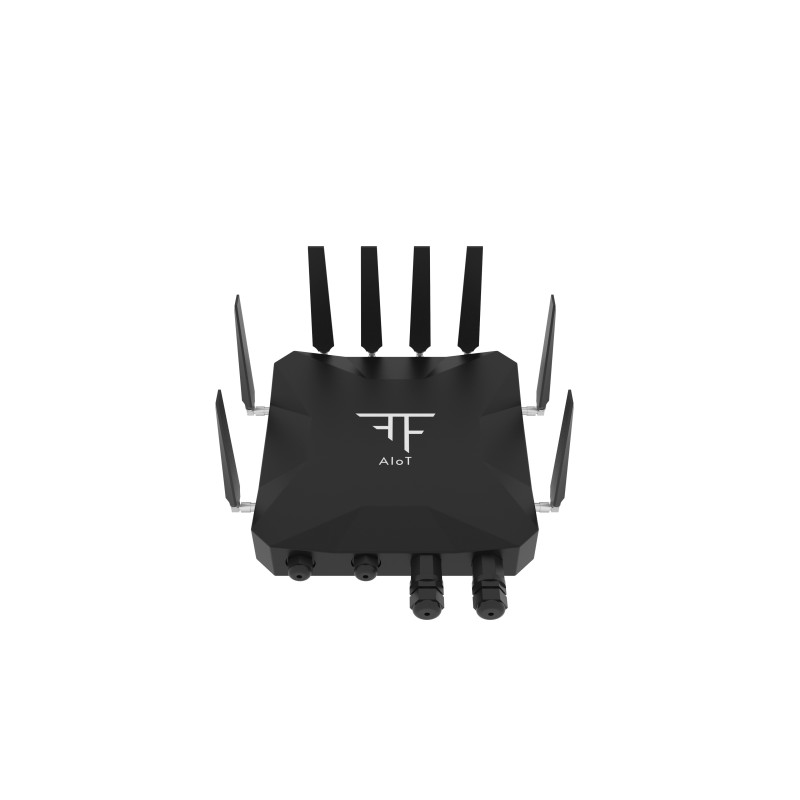

5G Industrial Outdoor Router F-NR200
- 5G SA/NSA Mode
- VPN/IPSec/GRE
- High Protection Level (IP67)
- Dual SIM Redundancy
- 5G LAN Support

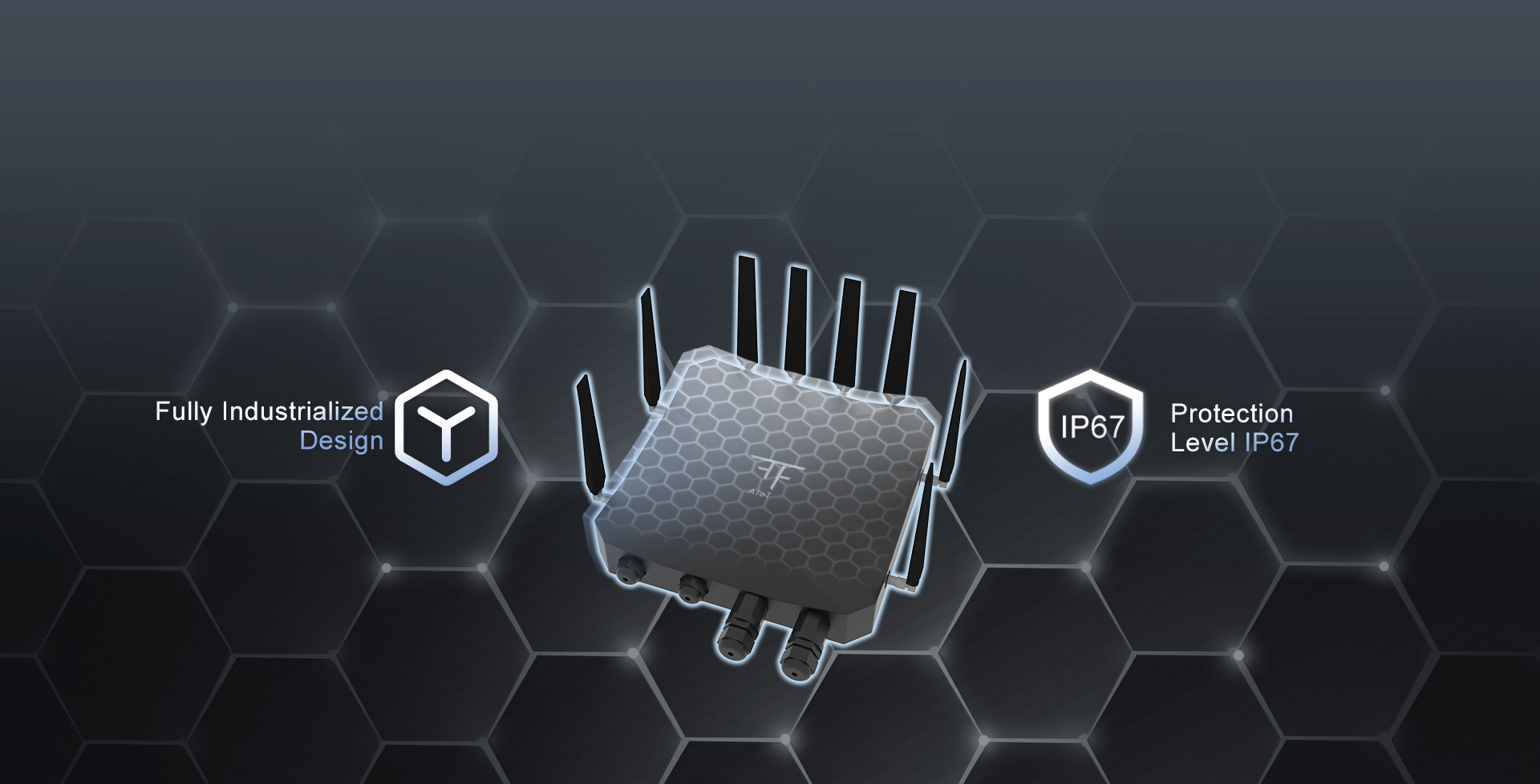

IP67-Rated for Dust and Water Resistance
Outdoor-rated, IP67 waterproof, metal cooling base ensures 24/7 stable performance under heavy loads.
Supports 5G NR (NSA & SA Modes)
Supports global 5G, providing high-speed, low-latency connectivity for diverse application scenarios.
Secure Networking Protocols
Built-in VPN, IPSec, GRE, OpenVPN, L2TP, and PPTP ensure secure and encrypted communication for industrial applications.
Rich Industrial Interface
Multiple Gigabit Ethernet ports, RS232/RS485, DI/DO, and antenna interfaces meet complex deployment needs.
Dual SIM with Automatic Failover
Auto-switches to backup SIM to maintain uninterrupted connectivity during network failures.
Empowering R16 5G LAN Deployment
Supports 5G LAN private networks based on 3GPP R16, suitable for low-latency, deterministic industrial communication.

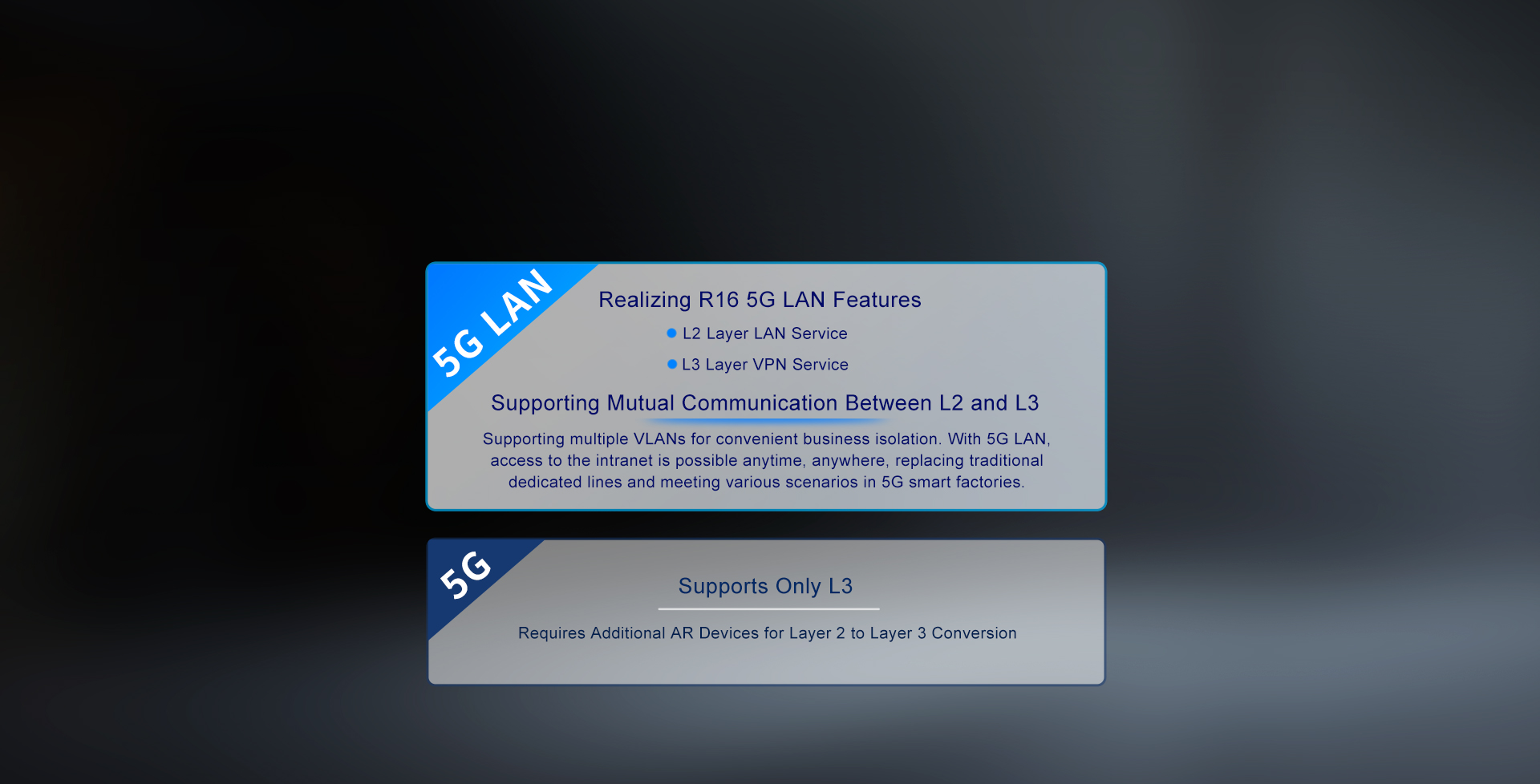

Empowering R16 5G LAN Deployment Turning 5G from "Usable" to "Excellent."
Realizing R16 5G LAN Features: L2 Layer LAN Service, L3 Layer VPN Service
Supporting Mutual Communication Between L2 and L3: Supports multiple VLANs for business isolation; 5G LAN enables intranet access anytime, replacing dedicated lines in smart factory scenarios.
Supports Only L3: Requires Additional AR Devices for Layer 2 to Layer 3 Conversion
Reliable and Uninterrupted Network Communication
High-speed Transmission with Low Latency

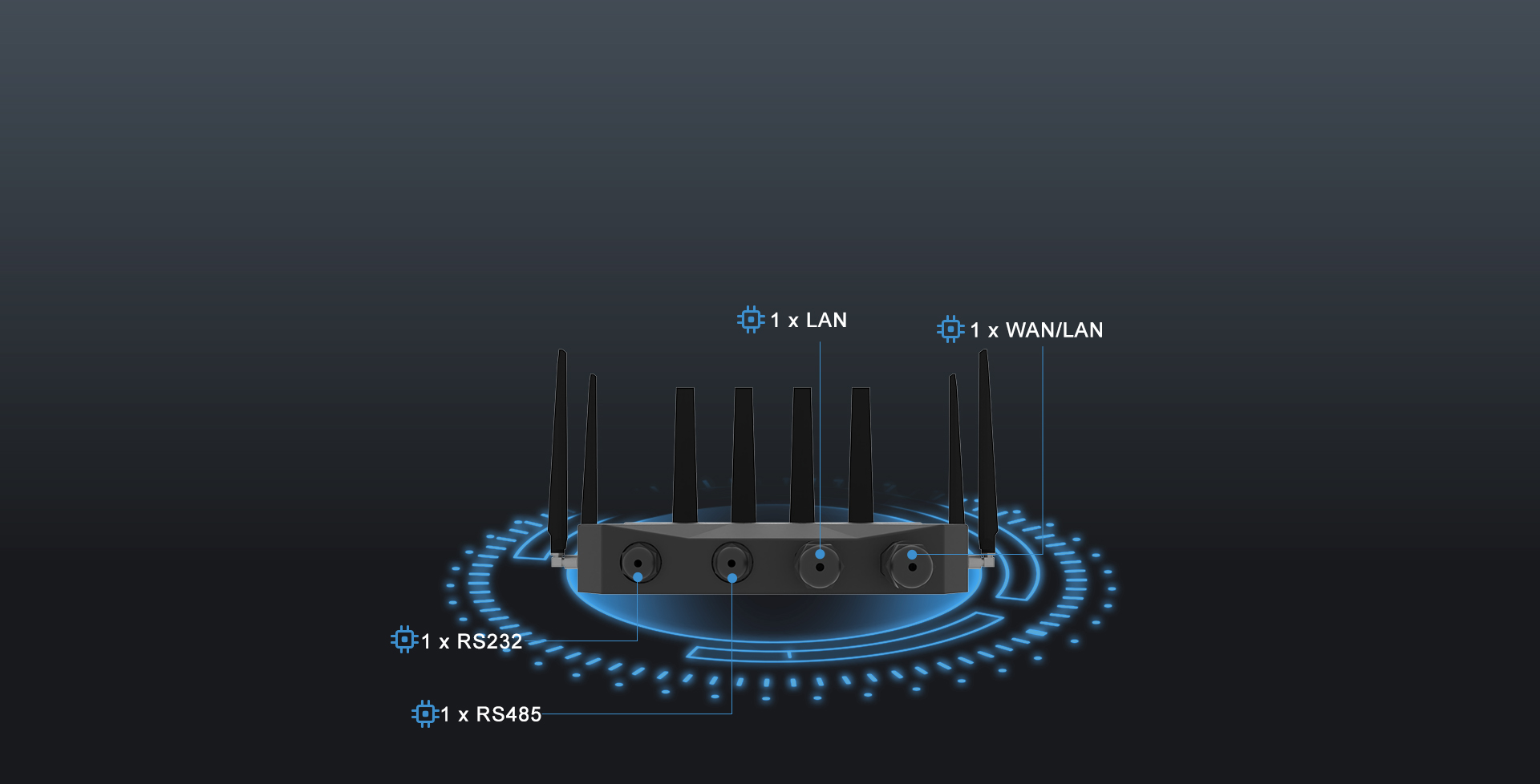

Rich Interface, Outstanding Performance
Offers RS232, RS485, Gigabit LAN/WAN, and dual-band Wi-Fi for flexible, fast IoT device connectivity and diverse industrial application deployment.

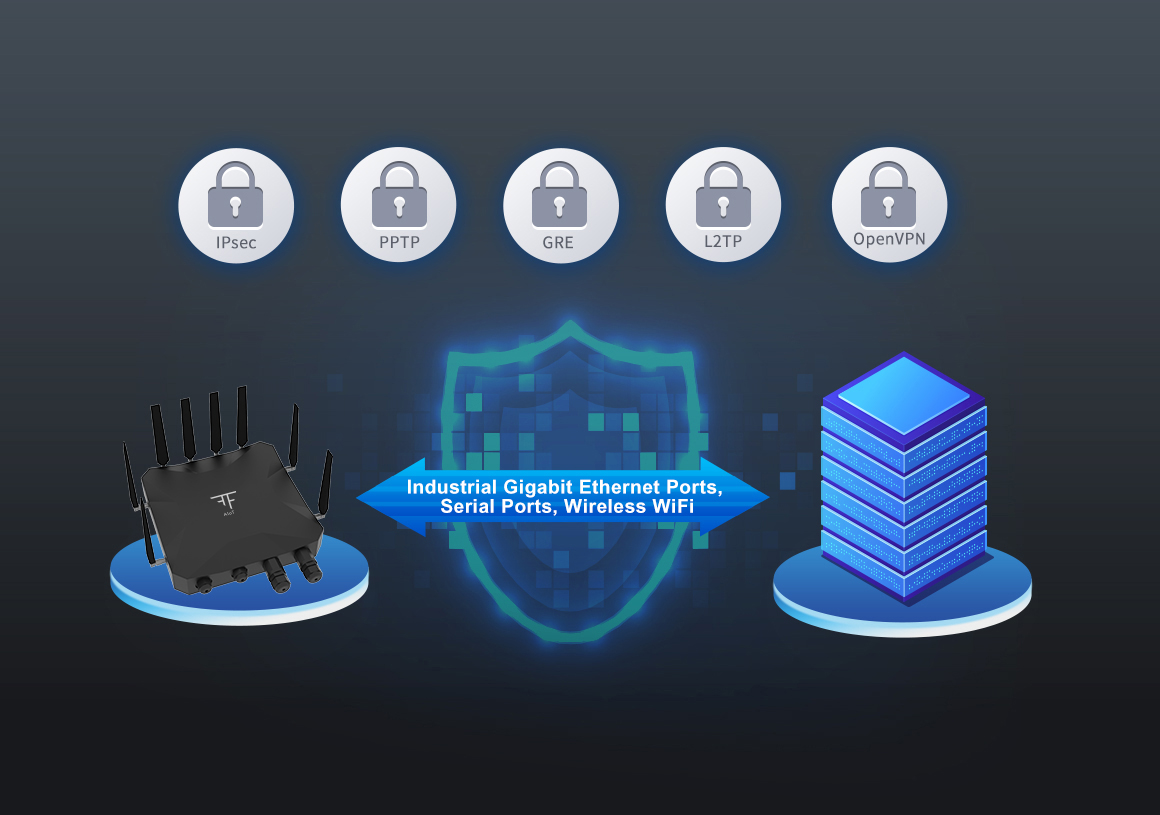

Multiple Access Methods Achieve Secure and Reliable Networking
Supports Gigabit Ethernet, serial ports, Wi-Fi, and multiple VPNs for secure, remote industrial communication and encrypted data transmission.
High Protection Level Suitable for Various Harsh Working Environments

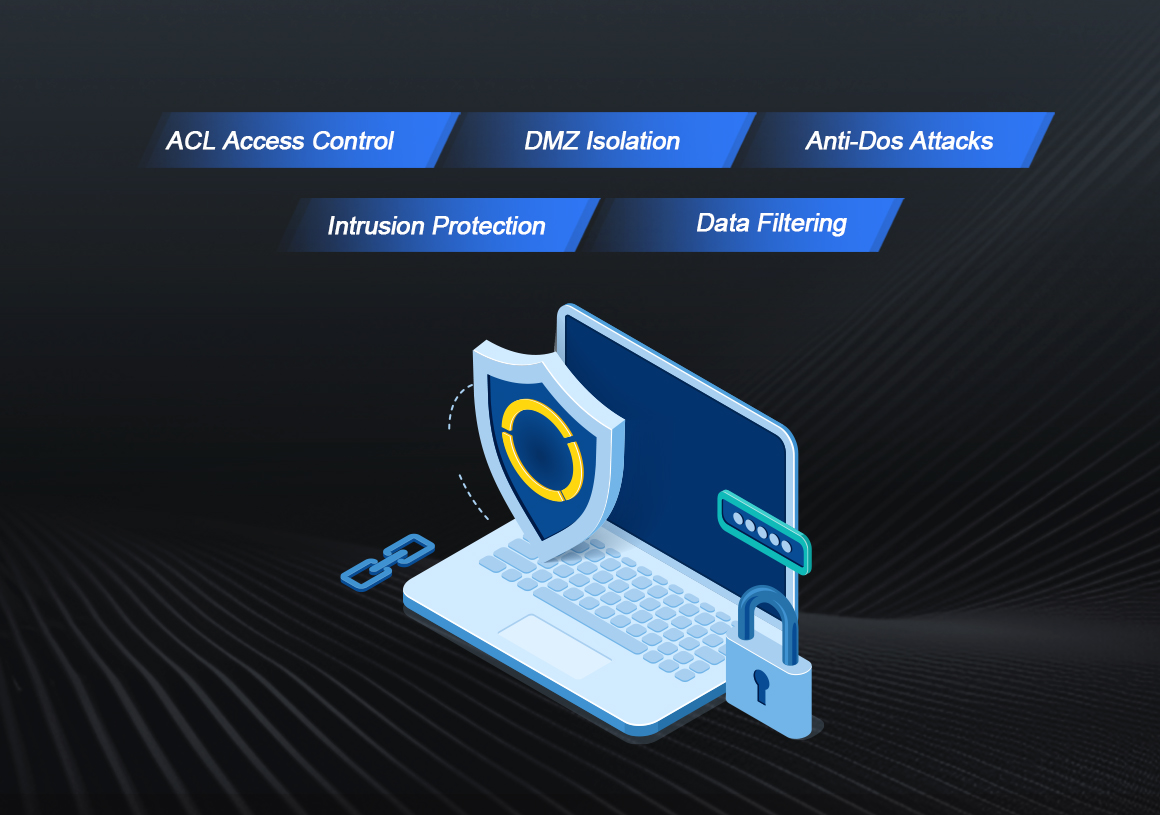

Comprehensive Network Security Protection
Equipped with Multiple Security Measures Such as ACL Access Control, DMZ Isolation, Anti-Dos Attacks, Intrusion Protection, Data Filtering, etc

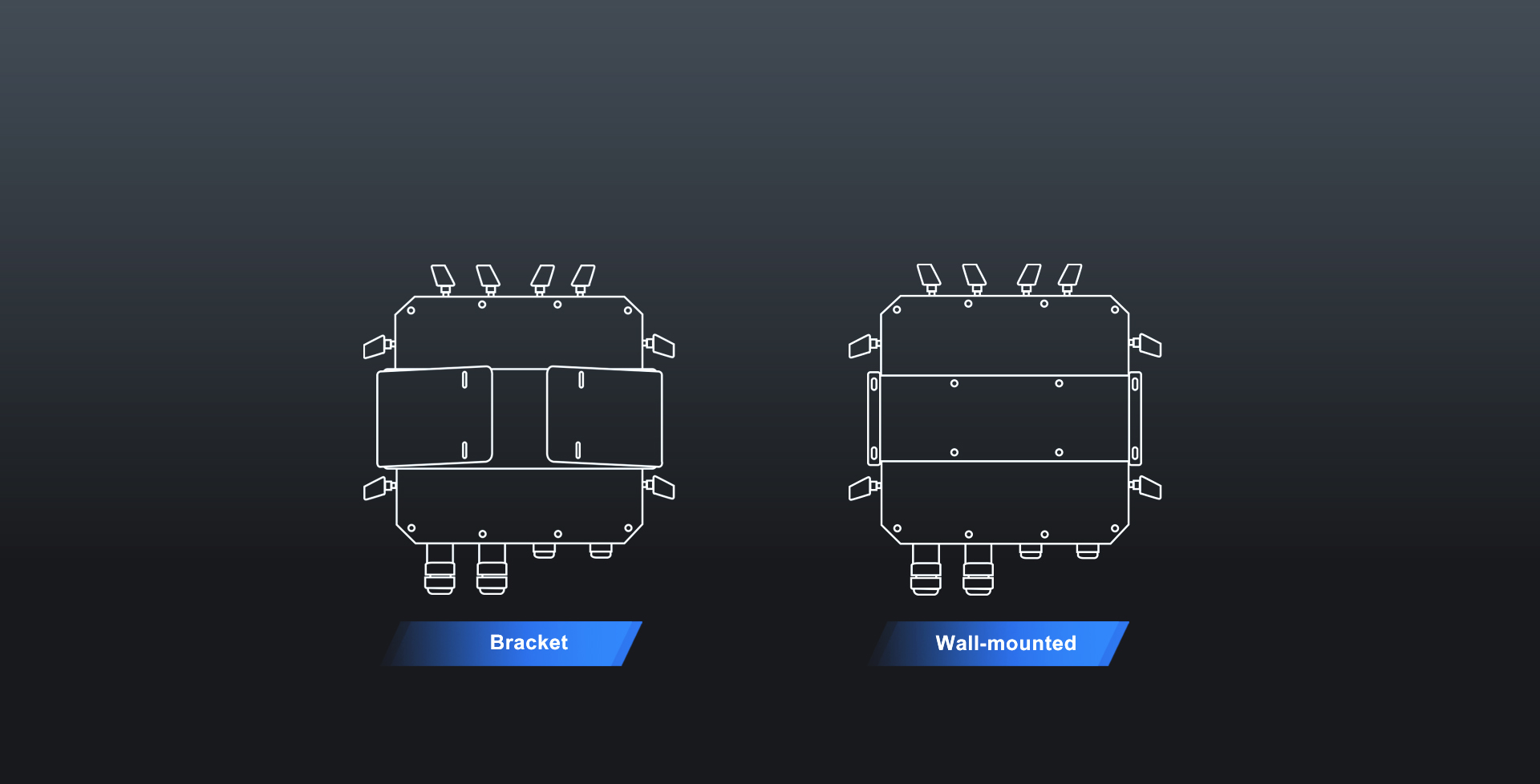

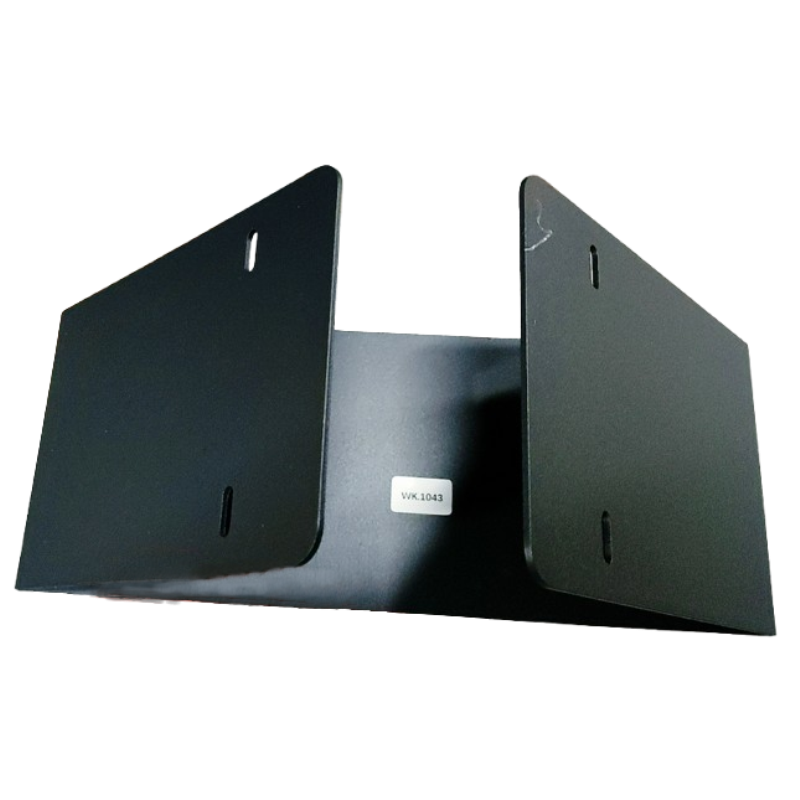

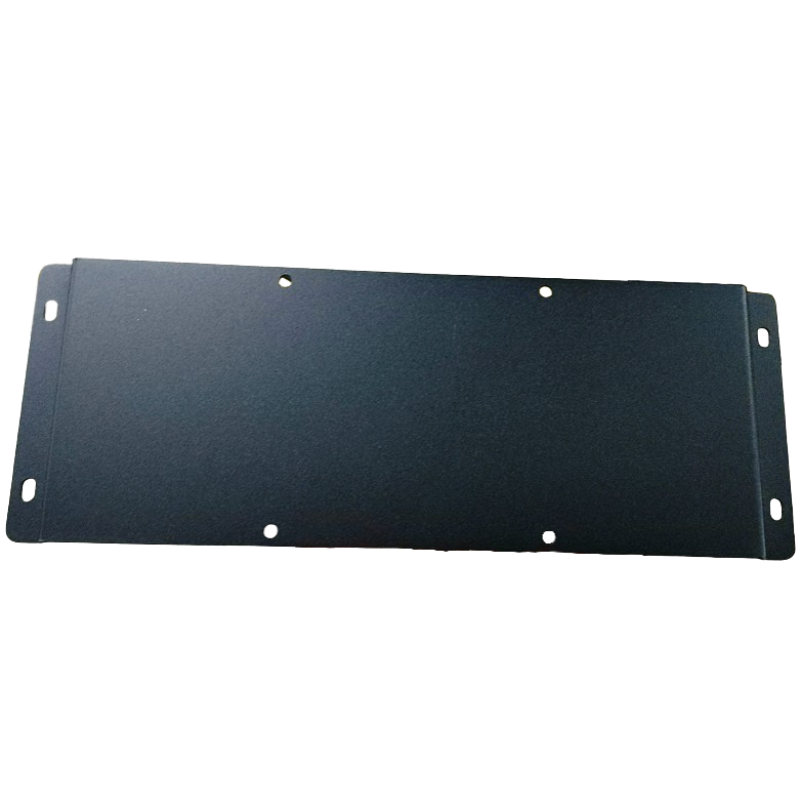

Flexible Mounting Options

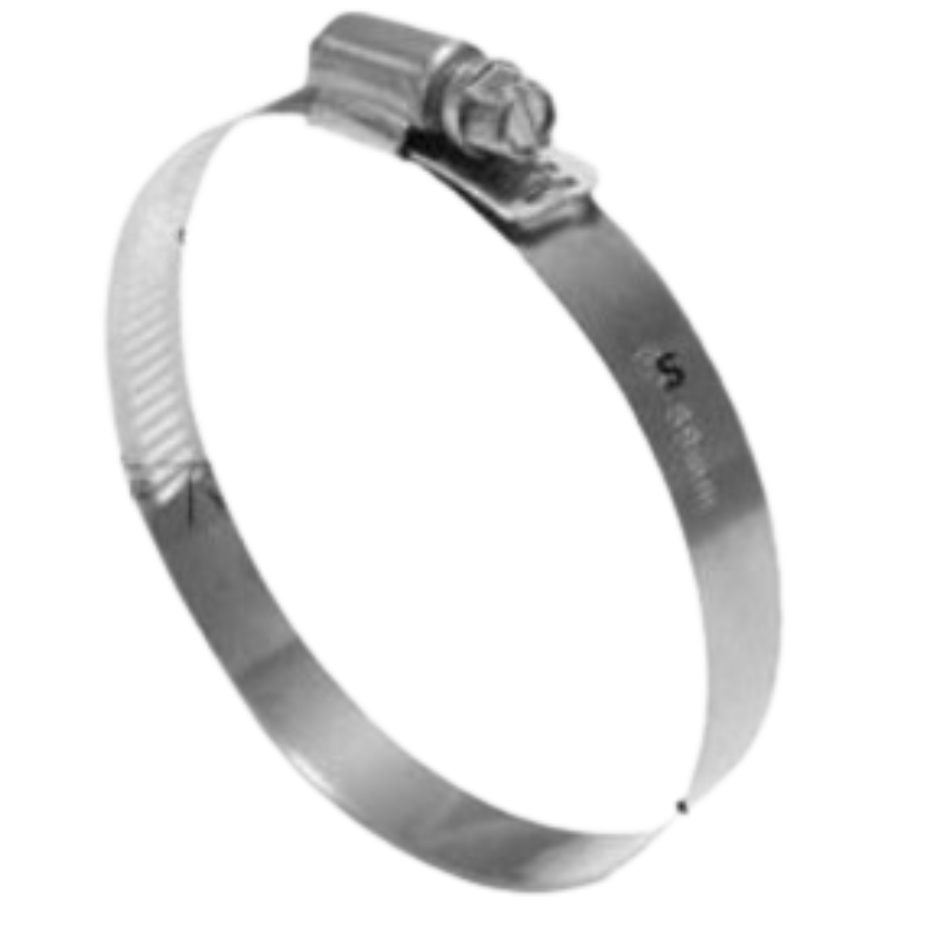

Supports both pole and wall mounting to accommodate diverse installation scenarios.
| Product | F-NR200 | F-NR200 5G Redcap |
| CPU | Qualcomm IPQ4019, 716.8MHz, Quad core | |
| DDR3 | 512MB | |
| Flash | Nor flash 16MB, NAND flash 128MB | |
| Antenna | 4X4 MIMO | 2X2 MIMO |
| Ethernet Port | 1x1G | |
| WIFI | 2.4GHz, 5.8GHz | |
| SIM Card | Dual SIM | |
| Protection Level | IP67 | |
| Dimension | 259x259x45 mm (Not include antenna and mounting parts) | |
| Operating Temperature | -35~+75ºC | |
| Operating Humidity | 95% (No-condensing) | |
| Cellular | ||
| Frequency Band | F-NR200 | F-NR200 5G Redcap |
|
5G NR: n1/ n2/ n3/ n5/ n7/ n8/ n20/ n28/ n41/ n66/ n71/ n77/ n78/ n79
LTE: B1/ B2/ B3/ B4(66)/ B5(18/ 19/ 26)/ B7/ B8/ B12(17)/ B13/ B14/ B20/ B25/ B26/ B28/ B29/ B30/ B38/ B39/ B40/ B41/ B42/ B43/ B46/ B48/ B71 |
5G NR SA：n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 77/ 78
LTE：B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 30/ 34/ 38/ 39/ 40/ 41/ 42/ 43/ 48/ 66/ 71 LTE-HPUE: B38/ 40/ 41/ 42/ 43 |
|
| Platform | UNISOC V510/SDX62 | SDX35 |
| 3GPP | Release 15/ Release 16 | |
| Theoretical Maximum Bandwidth |
5G NR：
DL 3.4Gbps， UL 350Mbps
LTE Cat20： DL 2.0Gbps，UL 150Mbps HSPA+： DL 42Mbps，UL 5.76Mbps |
5G SA Sub-6 (256QAM):
DL: 223Mbps, UL 123Mbps
LTE (256QAM): DL 195Mbps, UL 105Mbps |
| Interfaces | ||
| Ethernet (LAN) | 1 x 1G Ethernet (RJ45), auto MDI/MDIX | |
| Indicator | Power, Internet, WIFI, 5G/4G, Signal | |
| SIM Card | 2 x Nano-SIM interface (1 Main & 1 Backup) | |
| USB | Type C 2.0 | |
| Reset Button | Through this button, the parameter configuration can be restored to the factory value | |
| Hardware | ||
| CPU | Qualcomm IPQ4019, 716.8MHz, Quad core | |
| DDR3 | 512MB | |
| Flash | Nor flash 16MB NAND flash 128MB | |

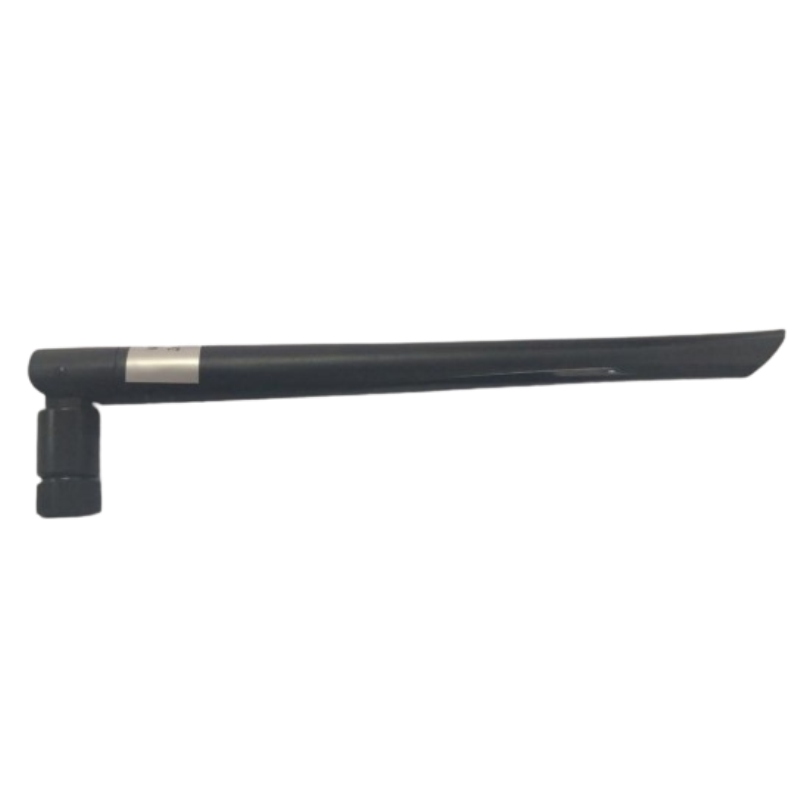

| WIFI | ||
| WIFI Protocol | IEEE802.11 a/b/g/n/ac | |
| Frequency | 2.4GHz, 5.8GHz | |
| Security | WEP, WPA, WPA2 encryption, WPS(optional) | |
| WIFI Mode | AP mode, Station mode (Option) | |
| Theoretical Maximum Bandwidth | IEEE802.11b/g：54Mbps IEEE802.11n：300Mbps IEEE802.11ac：866Mbps | |
| Power Supply | ||

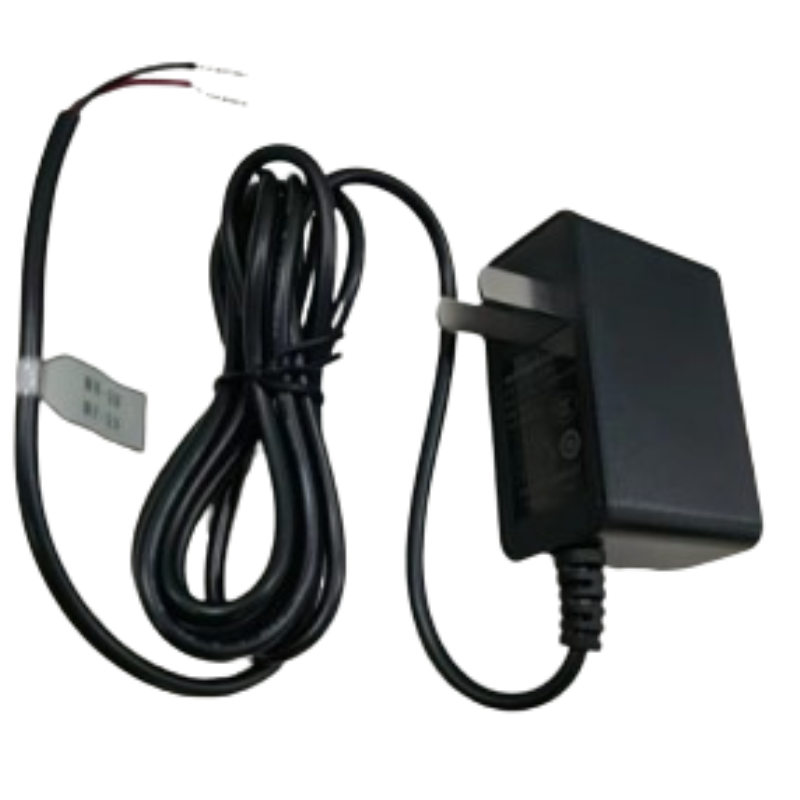

| Standard | DC 12V/1.5A and Support POE (802.3af) power supply | |
| Range | DC 9~36V | |
| Consumption | <1.2A (12V) | |
| Certification | ||
| CE | Completed | |
| UKCA | In Progress | |
| FCC | In Progress | |
| Physical Properties | ||
| Shell | Metal shell, protection grade IP67 | |
| Dimensions | 259x259x45 mm (Does not include antenna and mounting parts) | |
| Weight | 2480g | |
| Operating Temperature | -35~+75ºC | |
| Storage Temperature | -40~+85ºC | |
| Humidity | 95% (No-condensing) | |
| Software | ||
| Operating System | Linux base | |
| Wireless Setting | Include setting the wireless mode, wireless network mode, channel, channel bandwidth and, etc.. | |
| VPN | Include PPTP, L2TP, GRE, OPENVPN, IPSEC | |
| Dual SIM Setting | SIM priority: default is “SIM1 First” under Network Settings > Dual SIM. | |
| Network Protocol | TCP, IP. UDP, FTP, HTTP, and etc. | |
| Advanced Network Protocol | Support DHCP server/DHCP client/DHCP binding MAC/DDNS/NAT/DMZ/QOS, traffic statistics, real-time display of data transmission rate | |
| WAN Methods | Include Static IP/DHCP/PPPOE/DHCP-4G/5G | |
| Ethernet | Support IPV6, IPV4, 5G LAN | |
| Traffic & VLAN Management | Support traffic statistics, VLAN management, and VLAN division | |
| Advanced Tunneling & Bridging | Support EOIP, bridge mode, VxLAN, virtual IP, GRETAP, etc. | |
| Remote Management | Support SYSLOG, SNMP, TELNET, SSH, HTTPS | |
| Comprehensive Security Protection | Support SPI firewall, access control, URL filter | |
| Flexible Trigger Modes | Support multiple online and offline trigger modes | |
| Upgrade | Support local upgrade and remote upgrade | |
F-NR200 5G Industrial CPE Specification
