5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360

  • 5G/4G Network
  • Wi-Fi 6 AX6000
  • Multi-Network Compatibility
  • Flexible WIFI MESH
  • Gigabit Ethernet
5G Indoor Router  F-NR300
product-5 video-play-1
5G Outdoor Waterproof Router with MTK T750 (FNB600)-2 (2)
Global 5G Band Compatibility
Supports mainstream global 5G bands and 5G RedCap, ensuring wide operator compatibility and cost-effective deployment.
Wi-Fi 6 Technology for Faster Internet
Wi-Fi 6 AX6000 Performance
Powered by Qualcomm X62, delivers ultra-fast speeds, low latency, and high capacity for seamless multi-device connectivity.
Commercial Router System
Commercial Router System
Supports VPN, parental control, device management, remote firmware upgrades, and simple web-based setup interface.
High-Performance Multi-Core Processor
High-Performance Multi-Core Processor
Powered by a high-performance processor, supporting up to 4 cores for faster computing and smooth multitasking.
Ultra-Fast 2
Ultra-Fast 2.5G Ethernet
Supports 1Gbps wired speed for ultra-fast, stable, and low-latency data transmission.
MESH Networking
MESH Networking
Supports MESH networking with CPE or IDU to extend Wi-Fi coverage.

MTK7986 High-Performance CPU

Powered by the MTK7986 quad-core processor, enabling fast data processing, stable multitasking, and enhanced connectivity performance.

Powerful Multi-Core Engine

5G Global Connectivity, Covering Mainstream Frequency Bands Worldwide

Supports 5G/4G global connectivity, even in regions with limited spectrum. It can fully utilize network resources, allowing users to enjoy high-speed and stable 5G networks anytime

5G Global Connectivity, Covering Mainstream Frequency Bands Worldwide

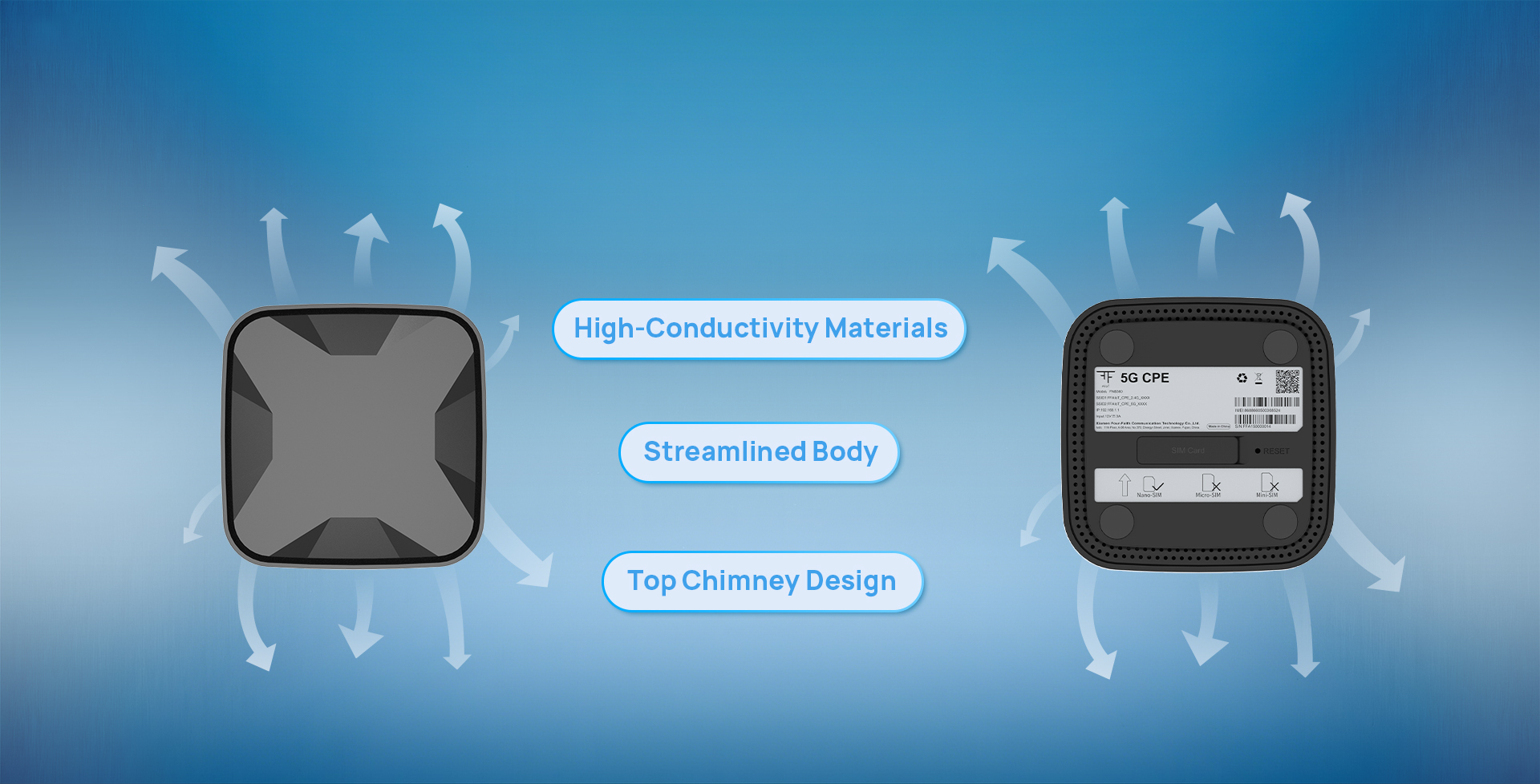

Fluid Mechanics, Worry-free Cooling

Fluid Mechanics, Worry-free Cooling

Ultra-Fast AX6000 Dual-Band Wi-Fi

Delivers up to 6000 Mbps across 2.4GHz/5GHz bands, supporting adaptive channels and 32+ users with fast, stable connections.

Ultra-Fast AX6000 Dual-Band Wi-Fi

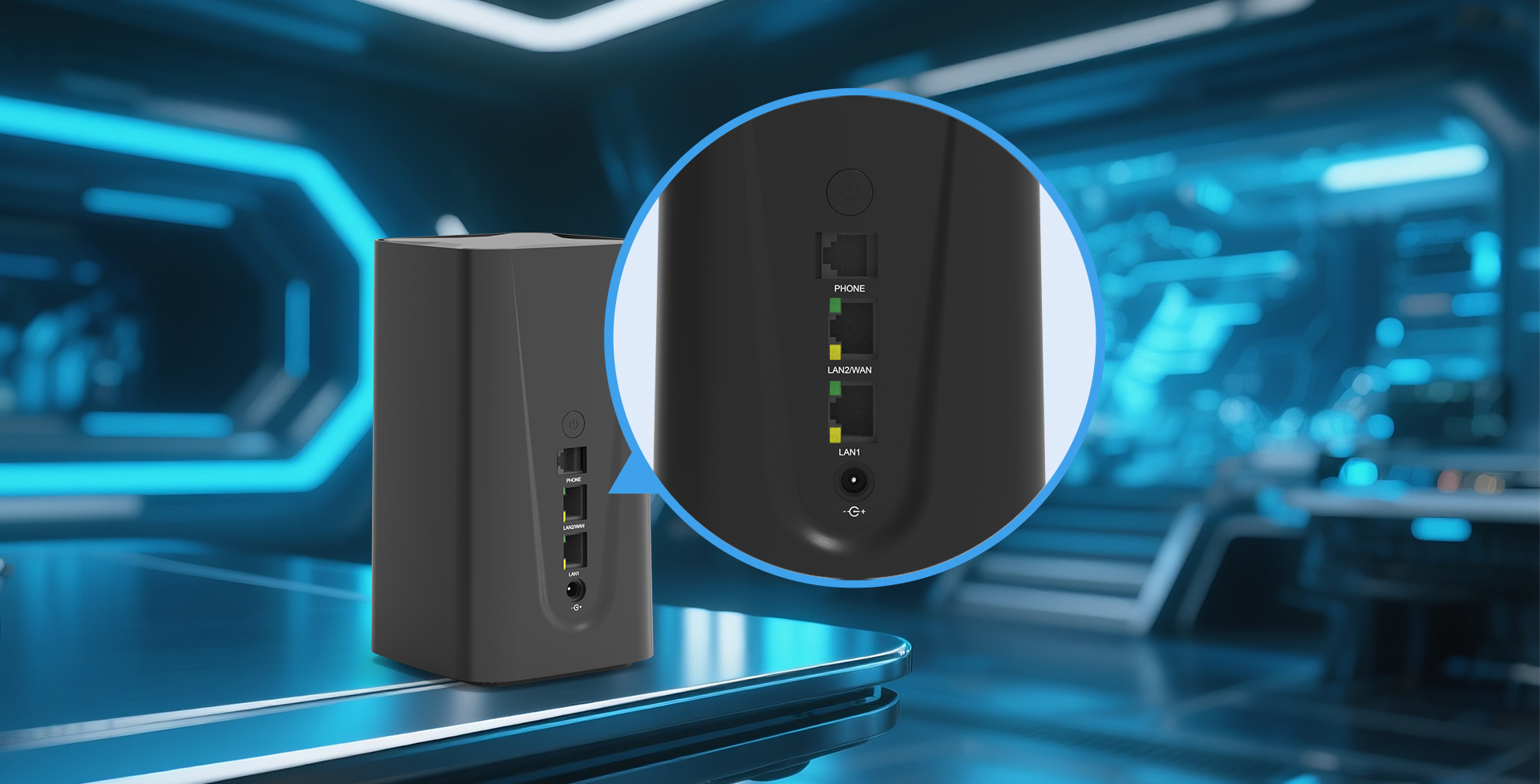

Dual Gigabit Ports, Fast and Stable Connectivity

Equipped with one Gigabit LAN/WAN and one Gigabit LAN port, enabling high-speed internet and multi-device access for smoother connections.

Dual Gigabit Ports, Fast and Stable Connectivity

Compact and Stylish

Small, sleek design fits seamlessly into any indoor space without disrupting aesthetics.

Compact and Stylish

WiFi MESH Support

Enables seamless MESH networking for wider coverage and stable multi-node wireless connections.

WiFi MESH Support
Product FNB360
CPU MTK7986, 2.0GHz, Quad-core
eMMC 8GB
DDR4 1GB
Antenna 2X2 MIMO
Ethernet Port 1x2.5G WAN/LAN, 1x2.5G LAN
WIFI 2.4GHz, 5GHz
SIM Card Single SIM
Shell ABS Material
Dimension 178x99x99mm
Operating Temperature -20~+60ºC
Operating Humidity 95% (No-condensing)
Cellular
Frequency Band 5G NSA n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 5G SA n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD B34/B38/B39/B40/B41/B42/B43/B48 WCDMA B1/B2/B4/B5/B8/B19
Platform MTK 7986
3GPP Release 16
Theoretical Maximum Bandwidth 5G SA Sub-6 DL 2.4 Gbps; UL 900 Mbps 5G NSA Sub-6 DL 2.8 Gbps; UL 550 Mbps LTE DL 1.6 Gbps; UL 200 Mbps WCDMA DL 42 Mbps; UL 5.76 Mbps
Interfaces
WAN/LAN 1 x 2.5G Ethernet (RJ45), auto MDI/MDIX
LAN 1 x 2.5G Ethernet (RJ45), auto MDI/MDIX
Indicator Signal, 5G, 4G, WIFI, Power
SIM Card 1 x Nano-SIM interface (Compatible with eSIM)
USB Type C
Reset Button Through this button, the parameter configuration can be restored to the factory value
Hardware
CPU MTK7986, 2.0GHz, Quad-core
eMMC 8GB
DDR4 1GB
WIFI
WIFI Protocol IEEE802.11 a/b/g/n/ac/ax
Frequency 2.4GHz, 5GHz
Channel Bandwidth 20MHz, 40MHz, 80MHz
MESH Network Support Four-Faith router and CPE to build the MESH network
Theoretical Maximum Bandwidth 2.4GHz 4x4MIMO 11ax: 1.148 Gbps 5GHz 4x4MIMO 11ax:  4.804 Gbps
Power Supply
Standard DC 12V/3A
Range DC 9~18V
Consumption <1.1A (12V)
Certification
CE In Progress
UKCA In Progress
FCC In Progress
Physical Properties
Shell ABS Material
Dimensions 178x99x99mm
Weight 650g
Operating Temperature -20~+60ºC
Storage Temperature -40~+85ºC
Humidity 95% (No-condensing)
Software
Operating System Openwrt base
Smart Wi-Fi Setup Easy SSID, guest WiFi, and WPS setup with flexible security and channel options.
Flexible MESH Networking Web-enabled MESH setup with one controller and multiple sub nodes.
Custom Mobile Settings Easily manage 5G, APN, IP type, band lock, and SIM configurations.
Data Usage Control Monitor daily/monthly data and set limits with alerts or auto disconnection.
Smart QoS Control Limit bandwidth by network type with default or custom QoS policies.
AT Command Support Control via AT commands for SMS, dialing, and device info retrieval.
Bandwidth Priority Setting Set network priority between mobile and Ethernet via web interface.
Download_file
Four-Faith 5G CPE Quick Start Manual-FFAIoT
Download_file
5G Indoor Router with Qualcoom X62 WIFI6 AX6000 (FNB360) Specification-V1.0.0

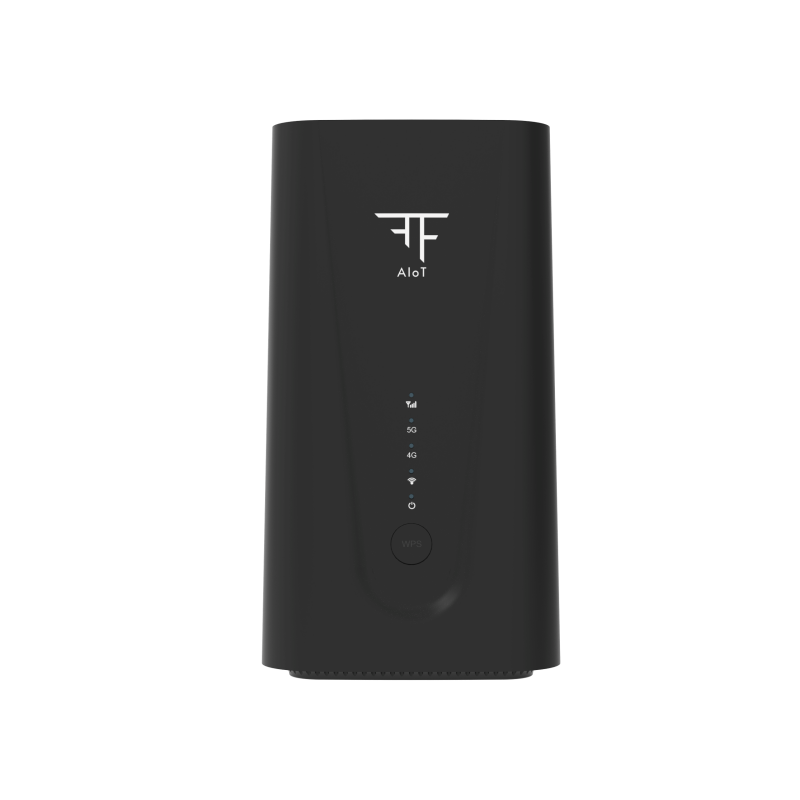

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (1)

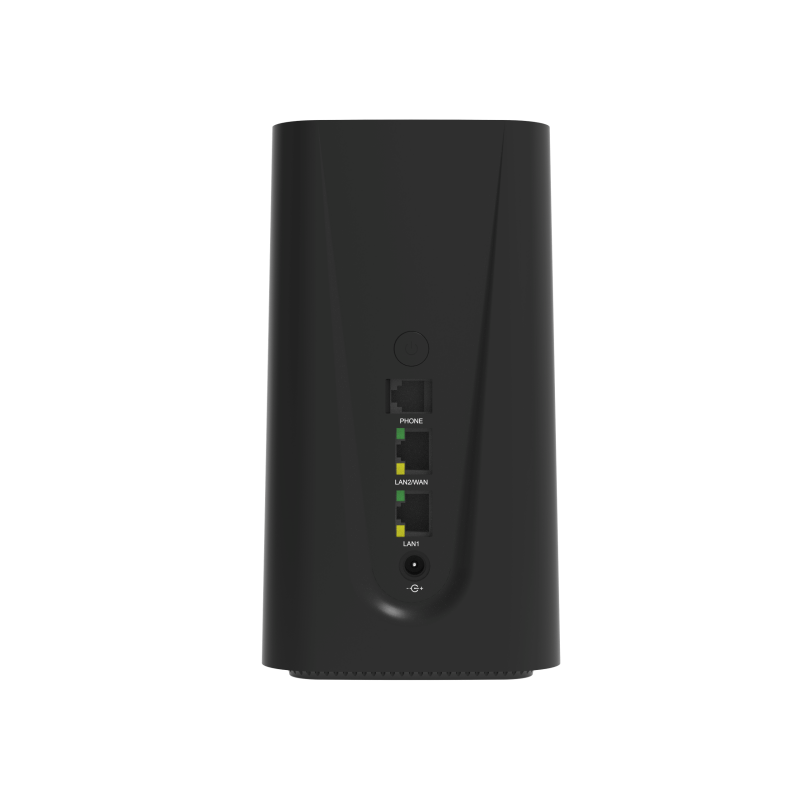

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (2)

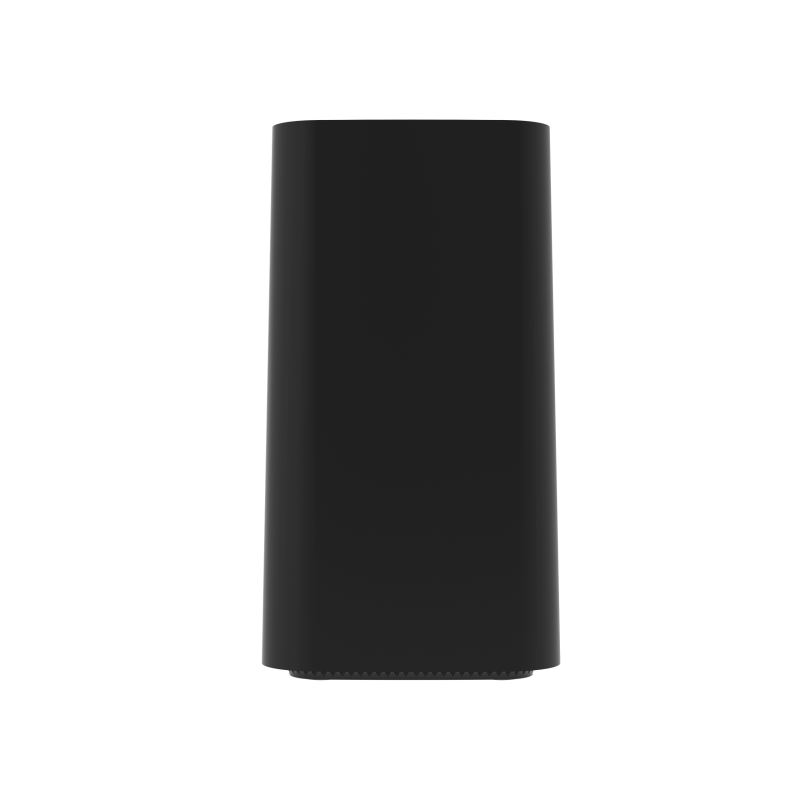

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (3)

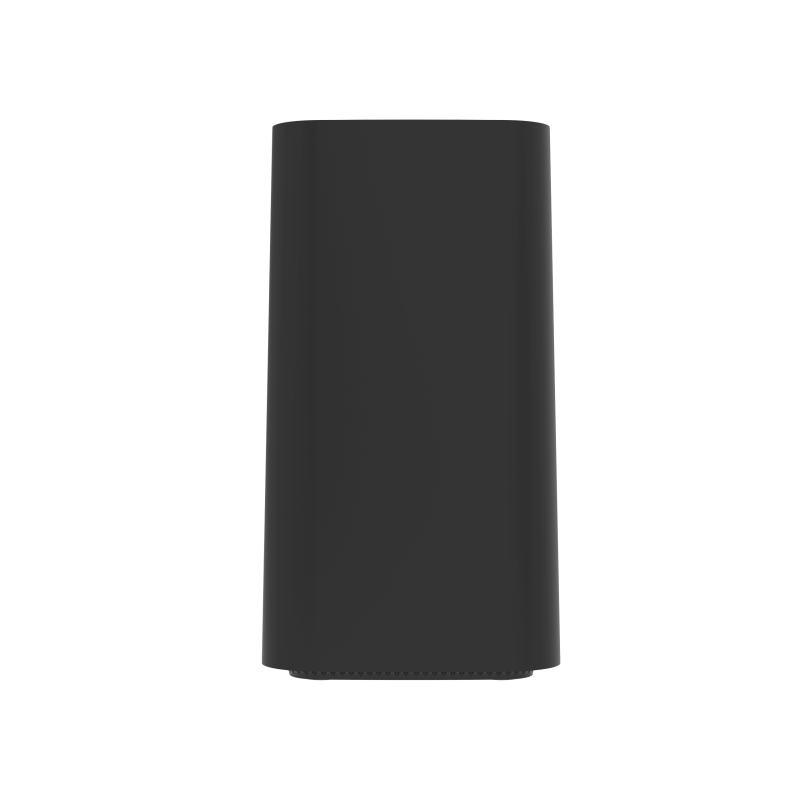

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (4)

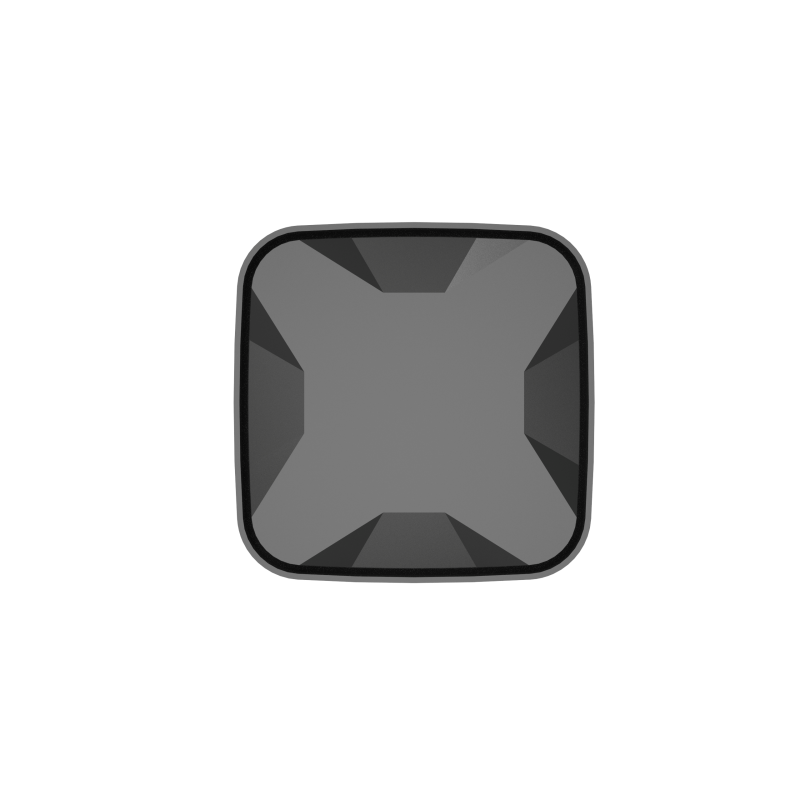

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (5)

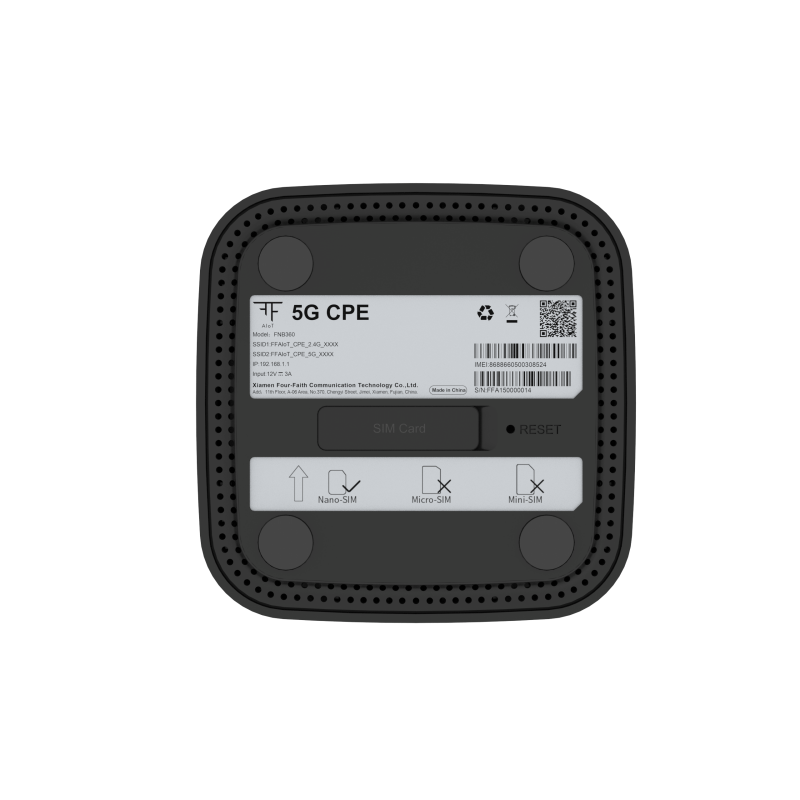

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (6)

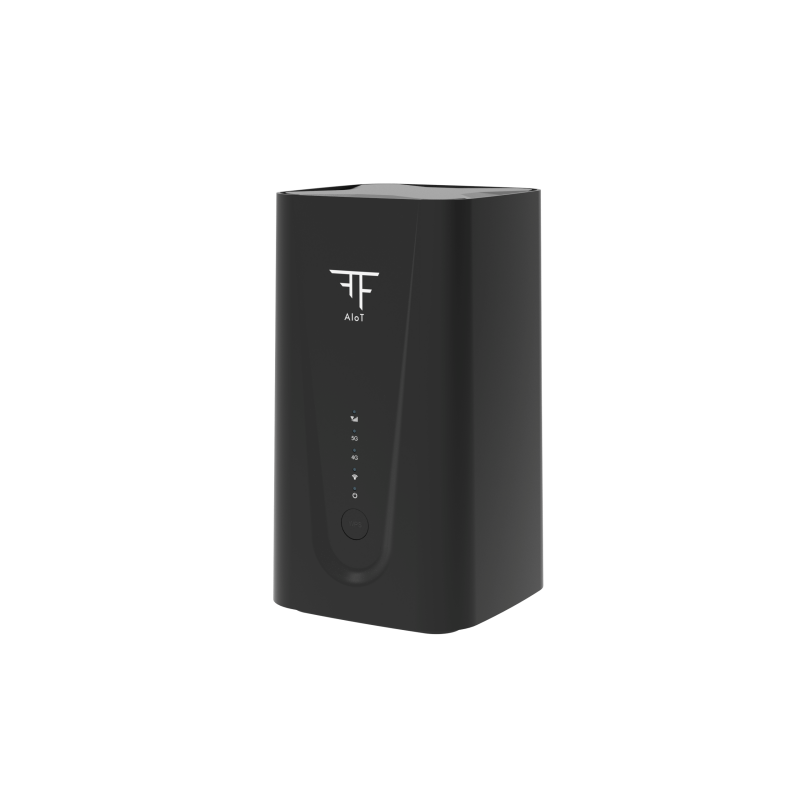

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (7)

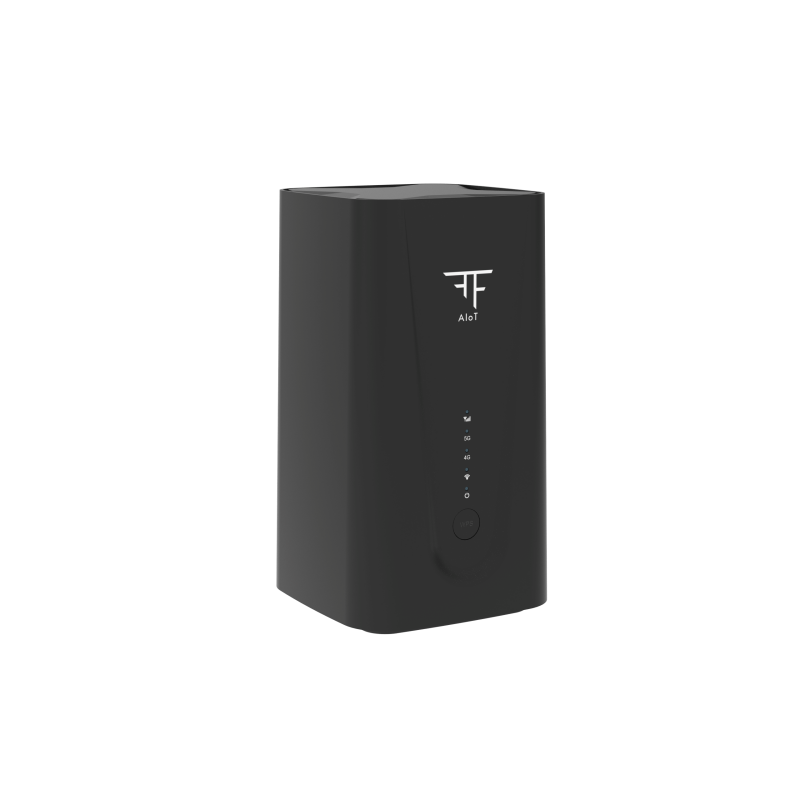

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (8)

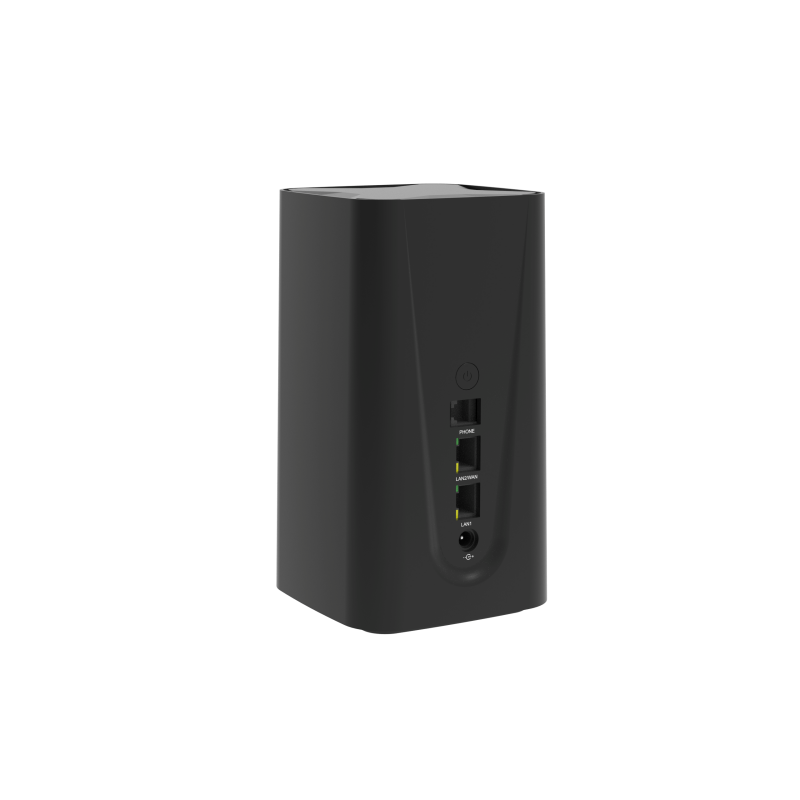

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (9)

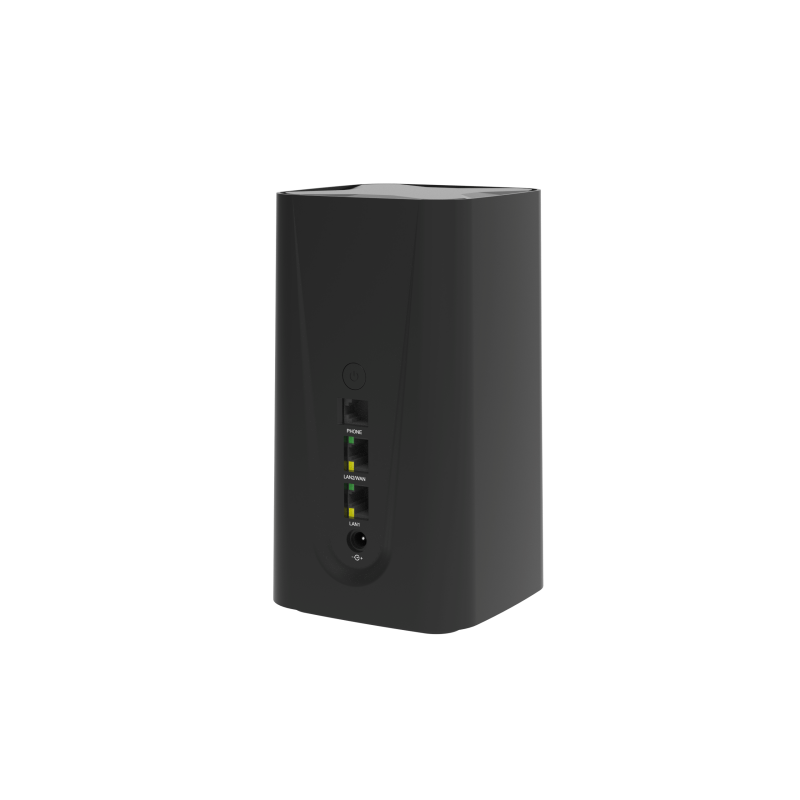

5G Indoor Router with Qualcomm X62 WIFI6 AX6000 FNB360-1 (10)
