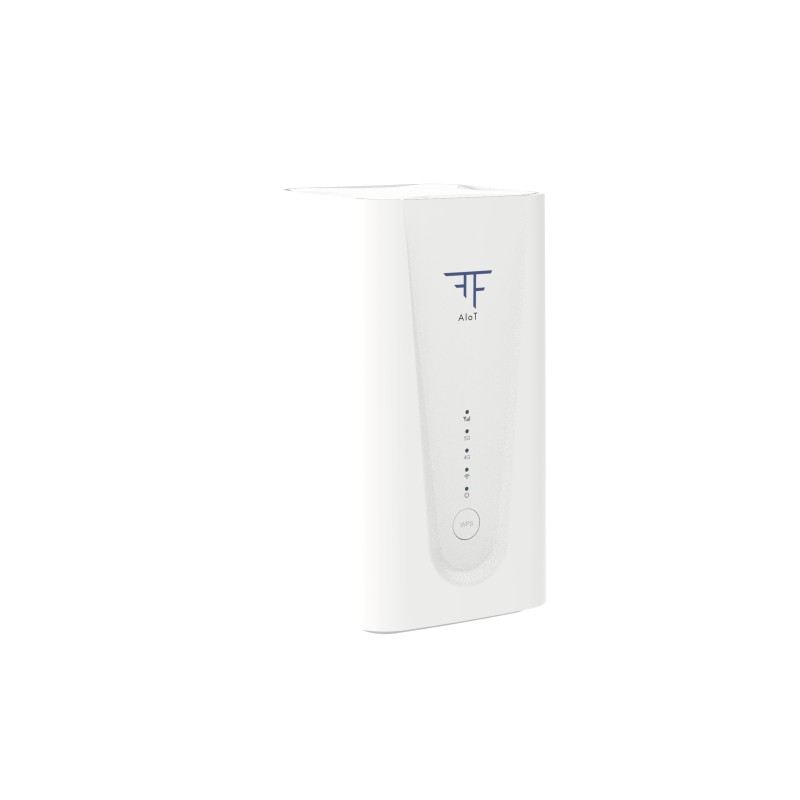

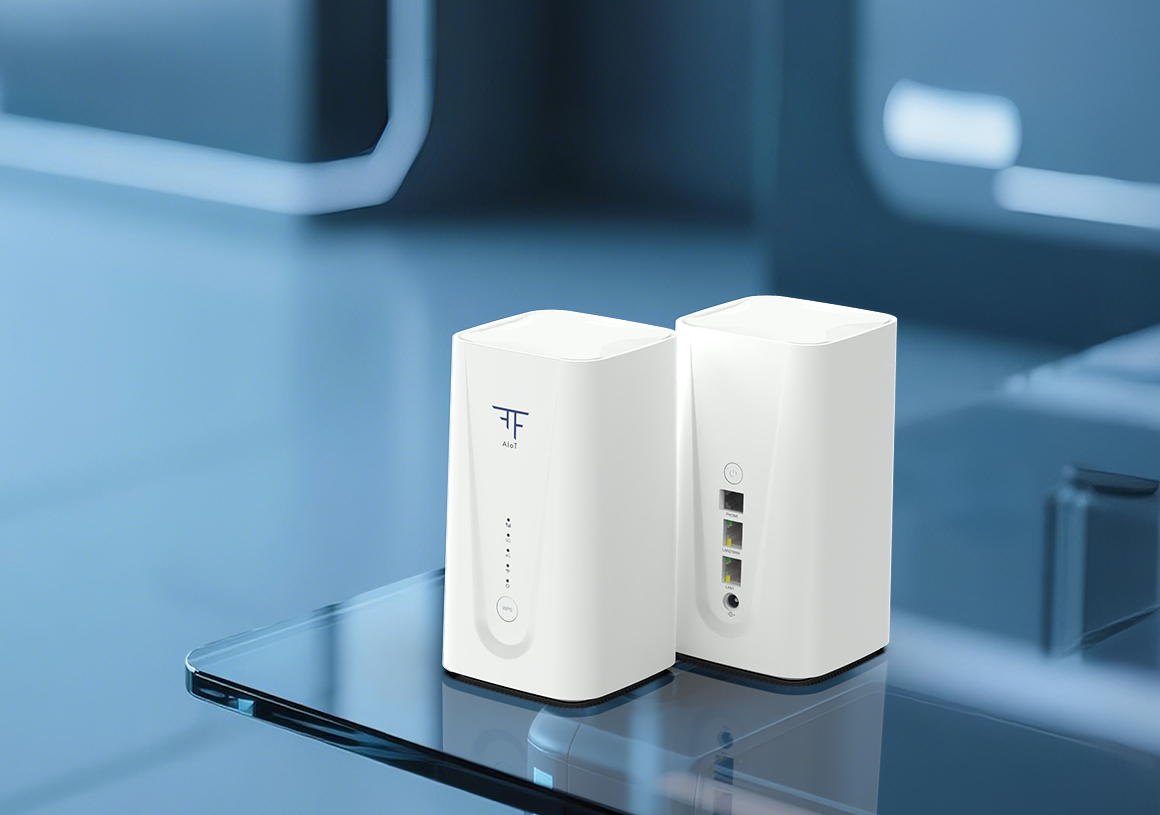

5G Indoor Router F-NR300
- 5G NSA/SA & 5G Redcap
- Wi-Fi 6 & WIFI MESH
- High-Performance Multi-Core Processor
- Flexible MESH Networking
- Up to 2.5 Gigabit Ethernet


Global 5G + 5G RedCap
Supports mainstream global 5G bands and 5G RedCap, ensuring wide operator compatibility and cost-effective deployment.

Wi-Fi 6 Technology for Faster Internet
Wi-Fi 6 offers blazing-fast speeds, lower latency, and better performance in high-device-density environments.

Commercial Router System
Supports VPN, parental control, device management, remote firmware upgrades, and simple web-based setup interface.

High-Performance Multi-Core Processor
Powered by a high-performance processor, supporting up to 4 cores for faster computing and smooth multitasking.

Ultra-Fast 2.5G Ethernet
Supports up to 2.5Gbps wired speed for ultra-fast, stable, and low-latency data transmission.

MESH Networking
Supports MESH networking with CPE or IDU to extend Wi-Fi coverage.
Powerful Multi-Core Engine
Equipped with a high-performance multi-core processor for faster, smoother data processing and connectivity.

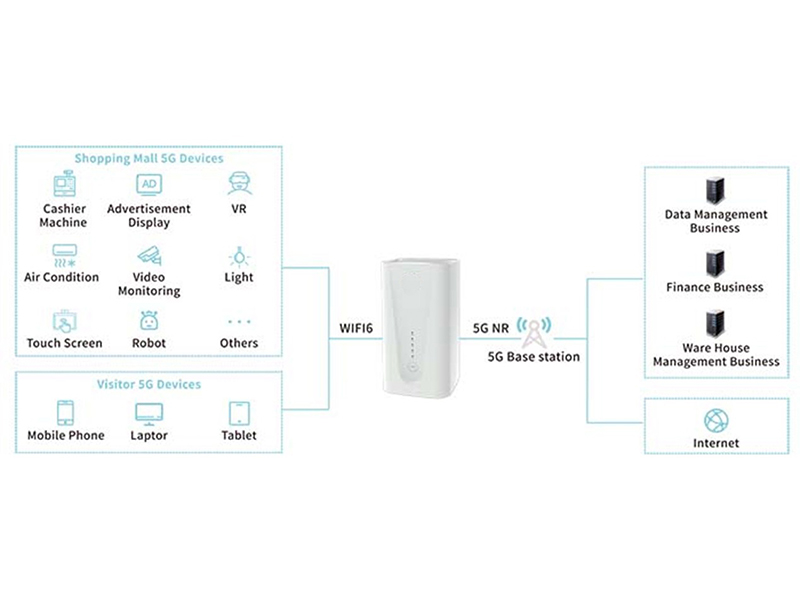

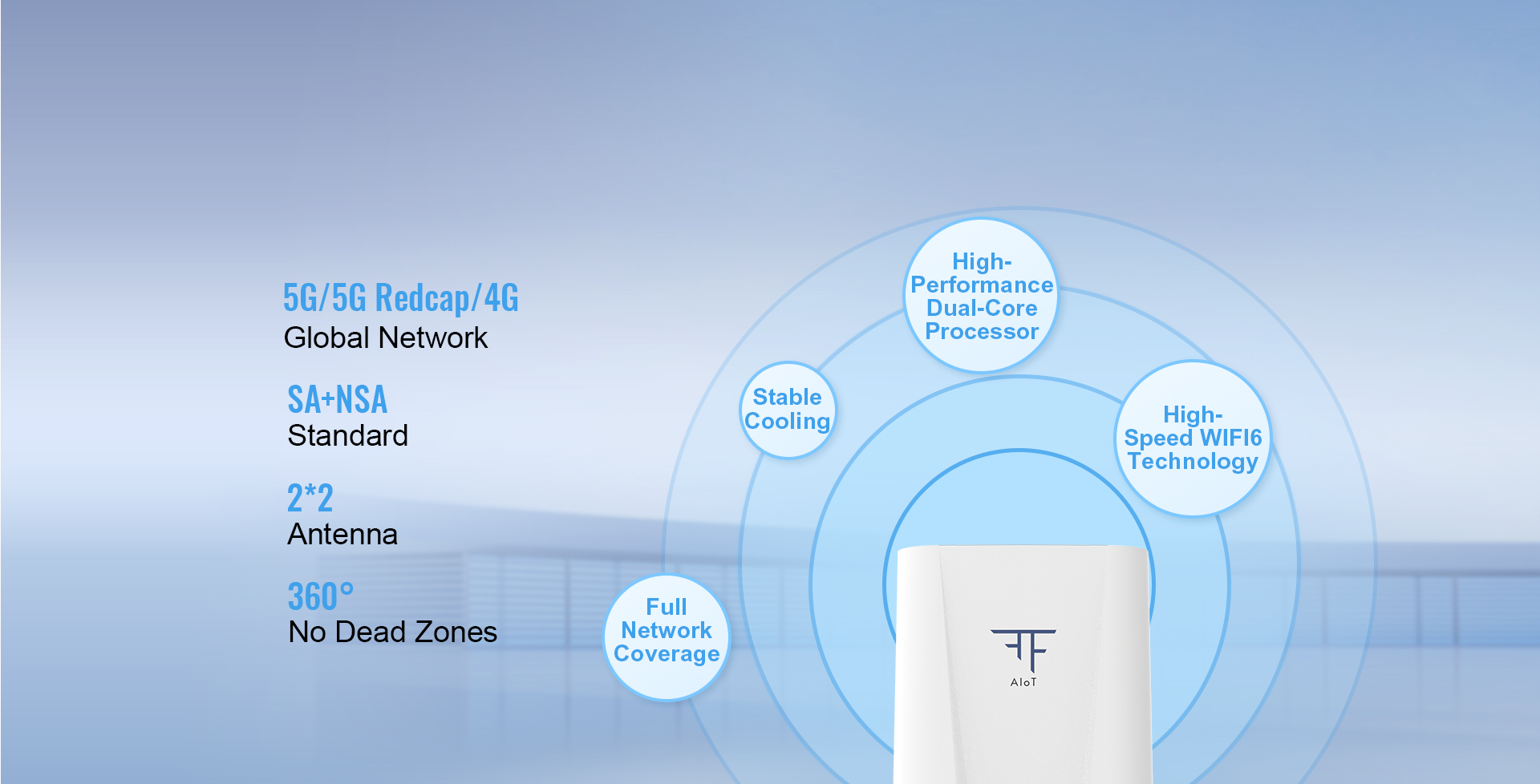

Seamless 5G and Wi-Fi 6 Connectivity

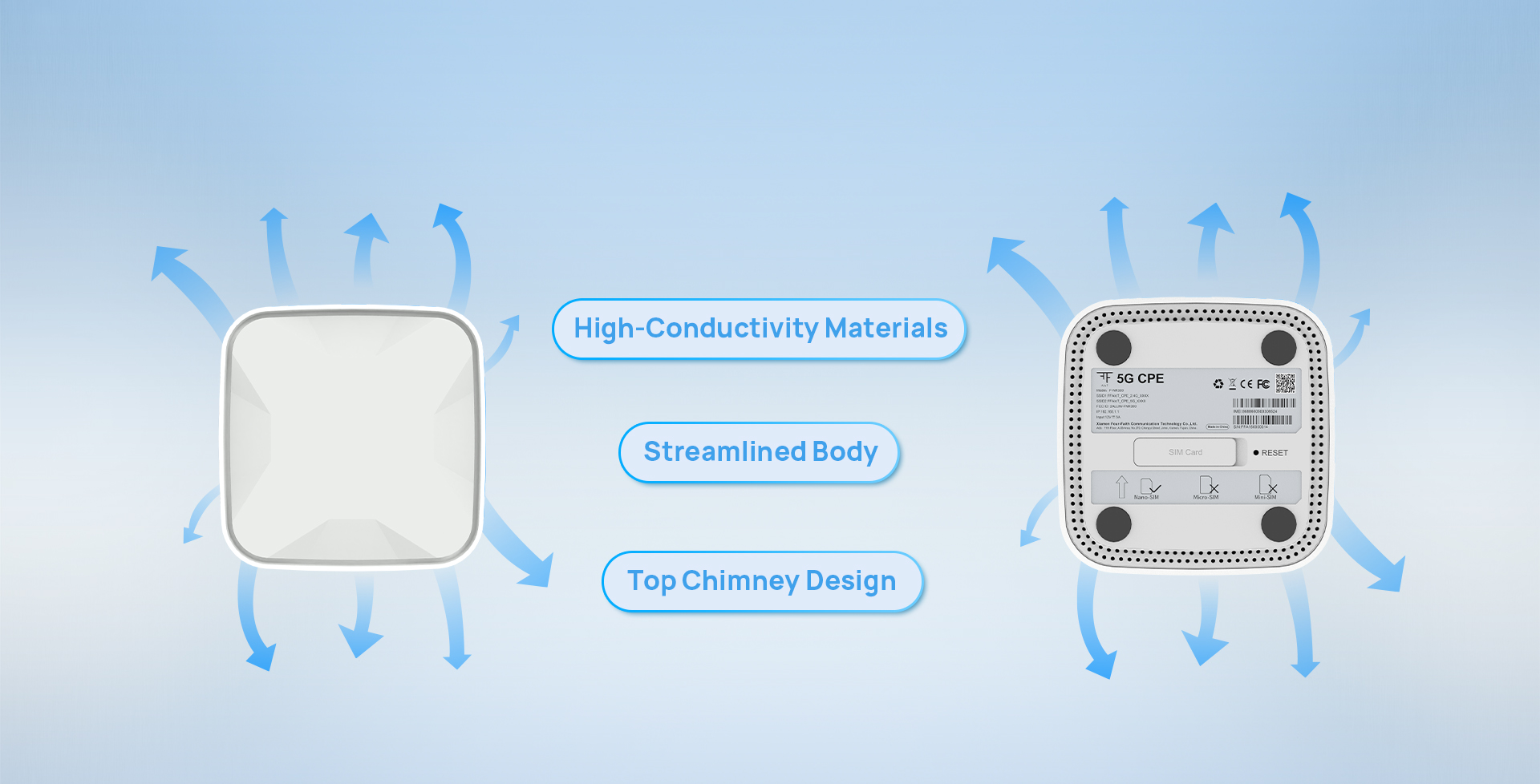

Fluid Mechanics, Worry-free Cooling

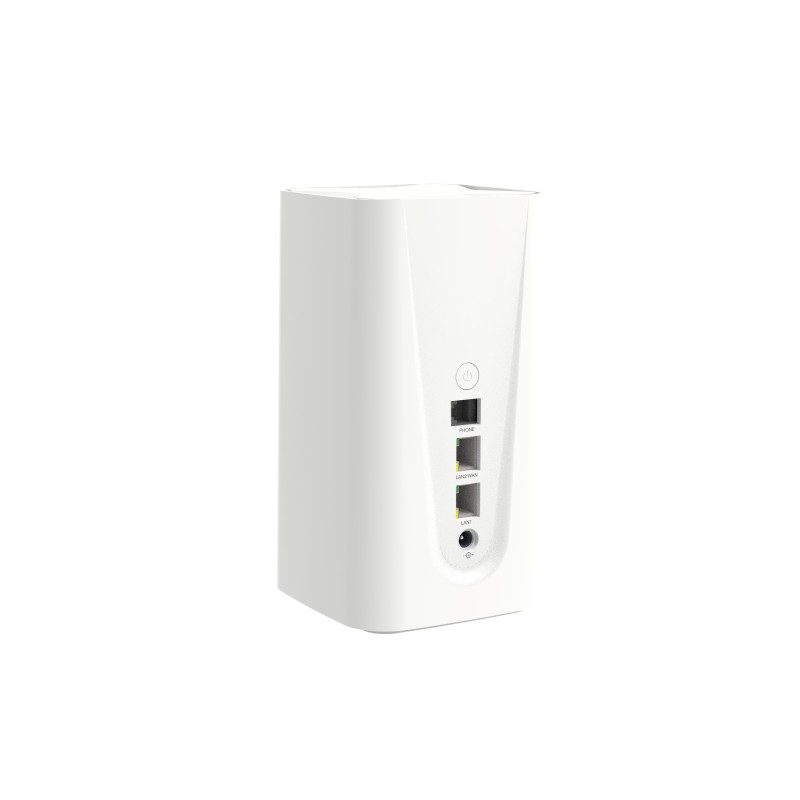

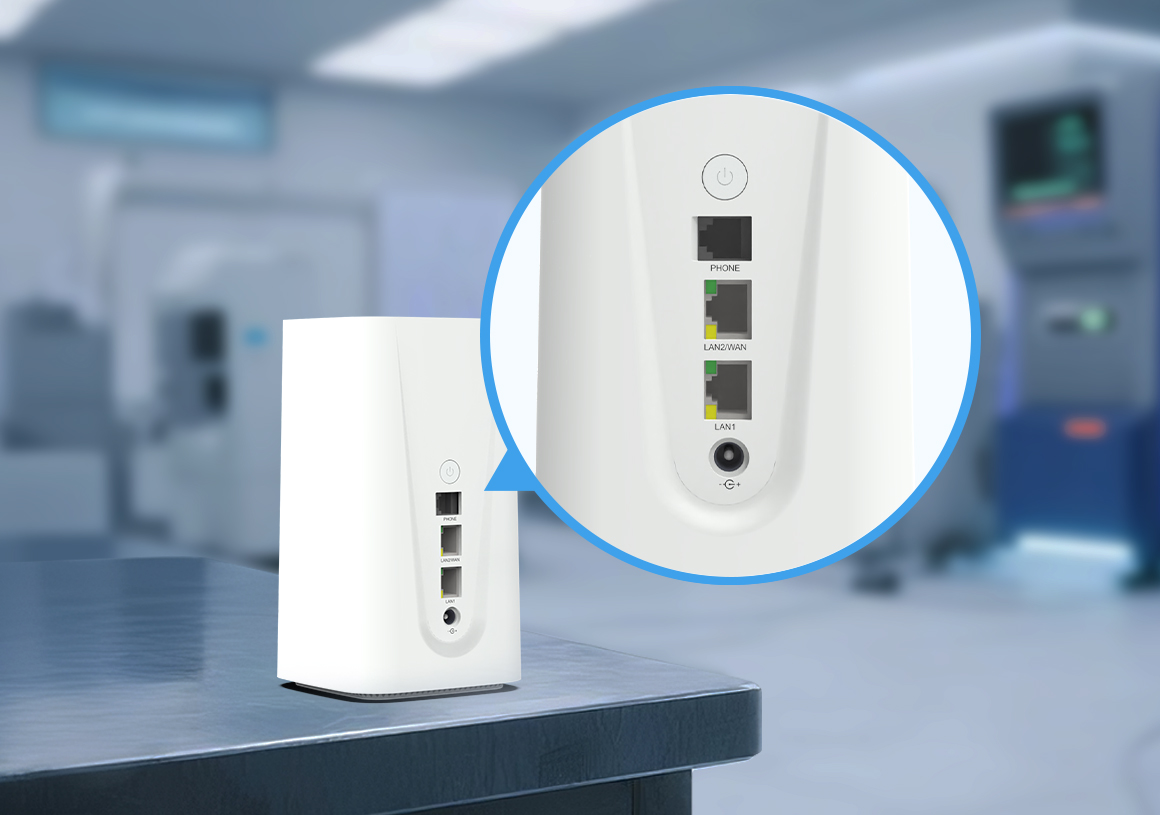

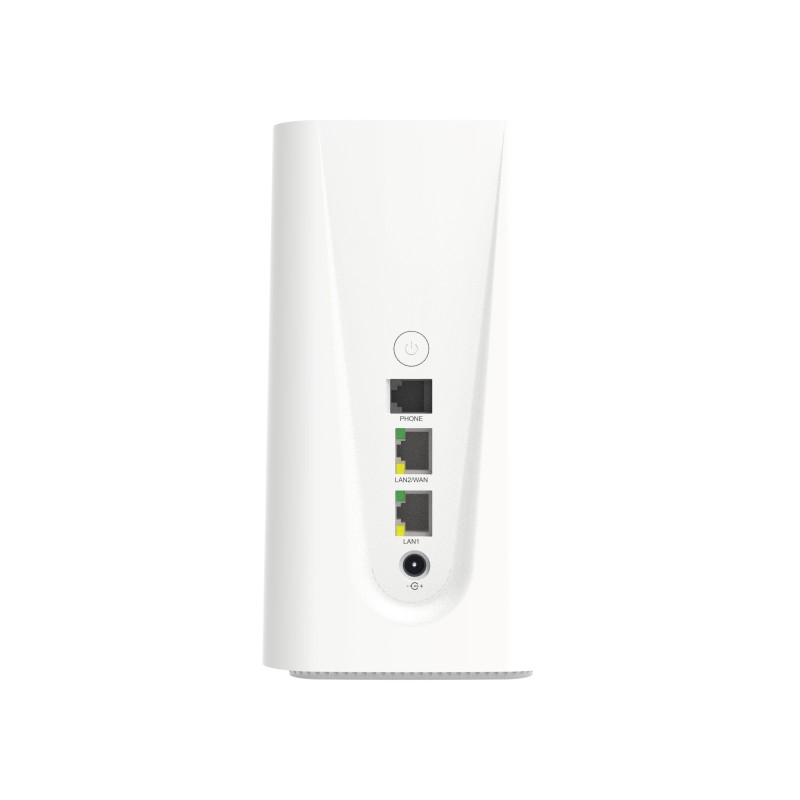

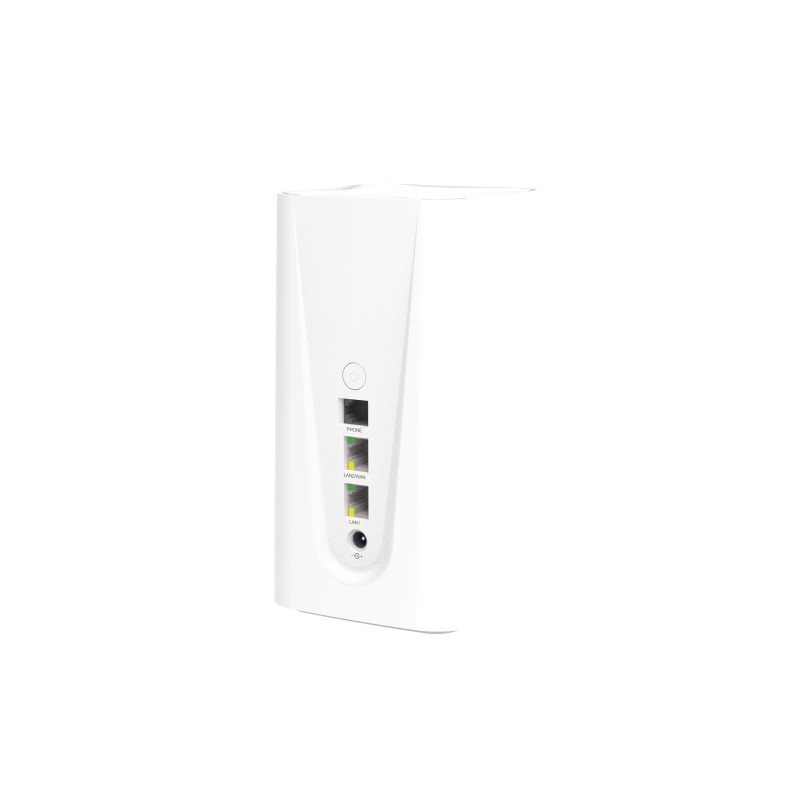

Dual Gigabit Ports, Fast and Stable Connectivity
Equipped with one 2.5G LAN/WAN and one Gigabit LAN port, enabling high-speed internet and multi-device access for smoother connections.

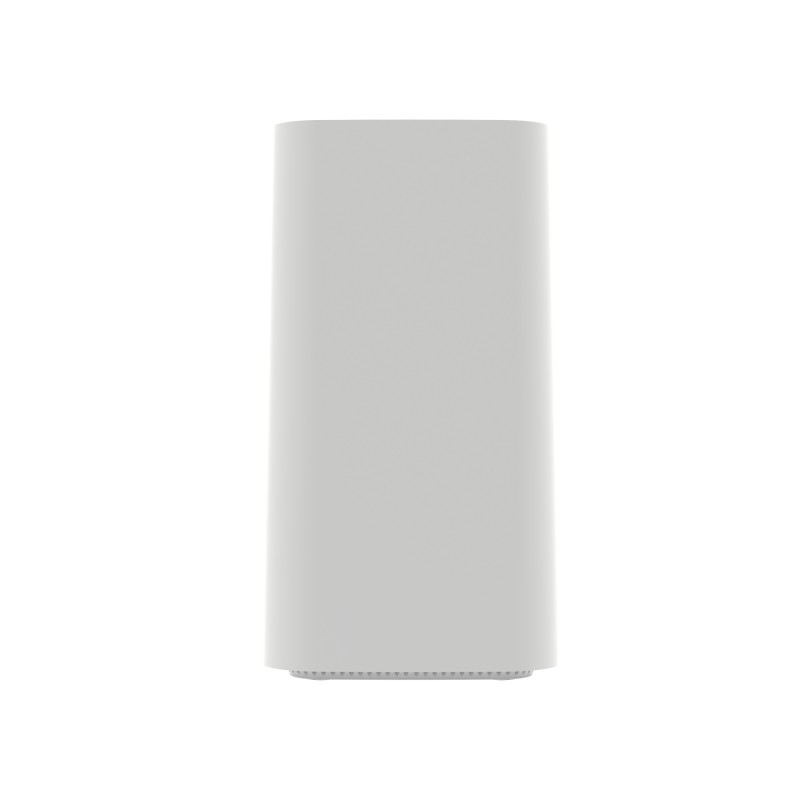

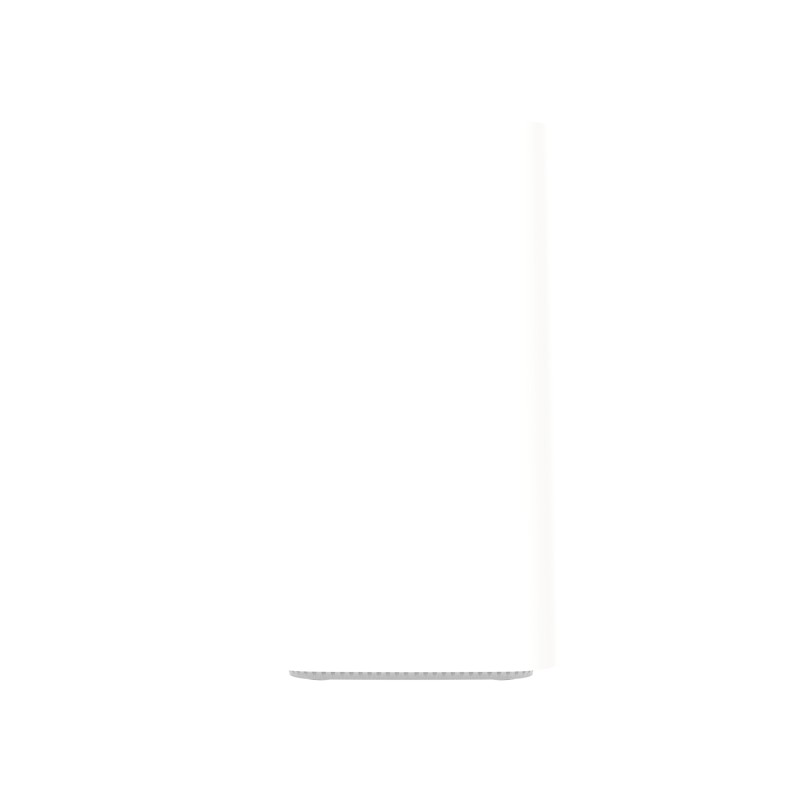

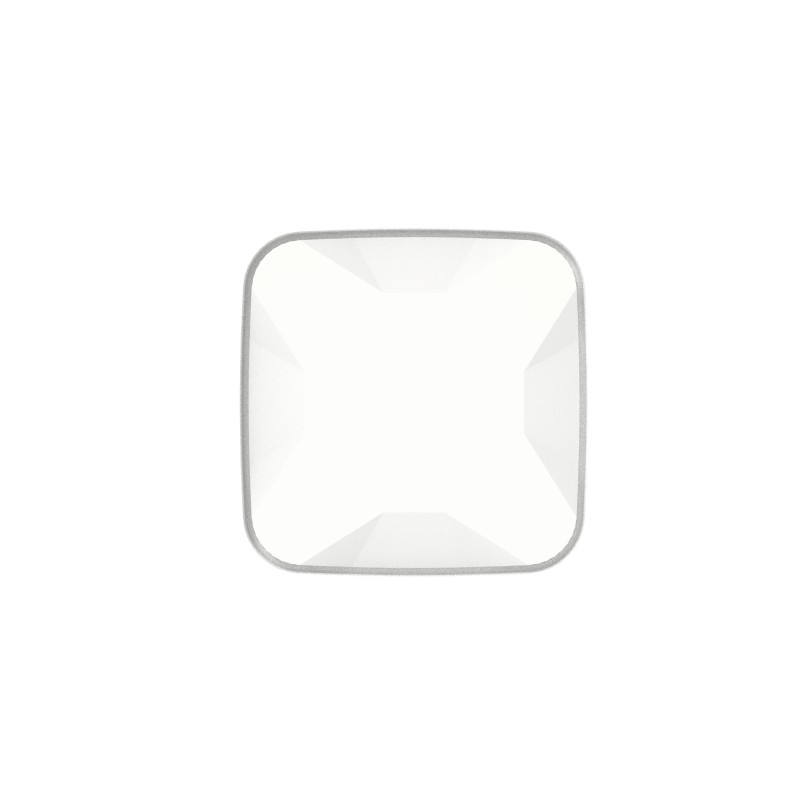

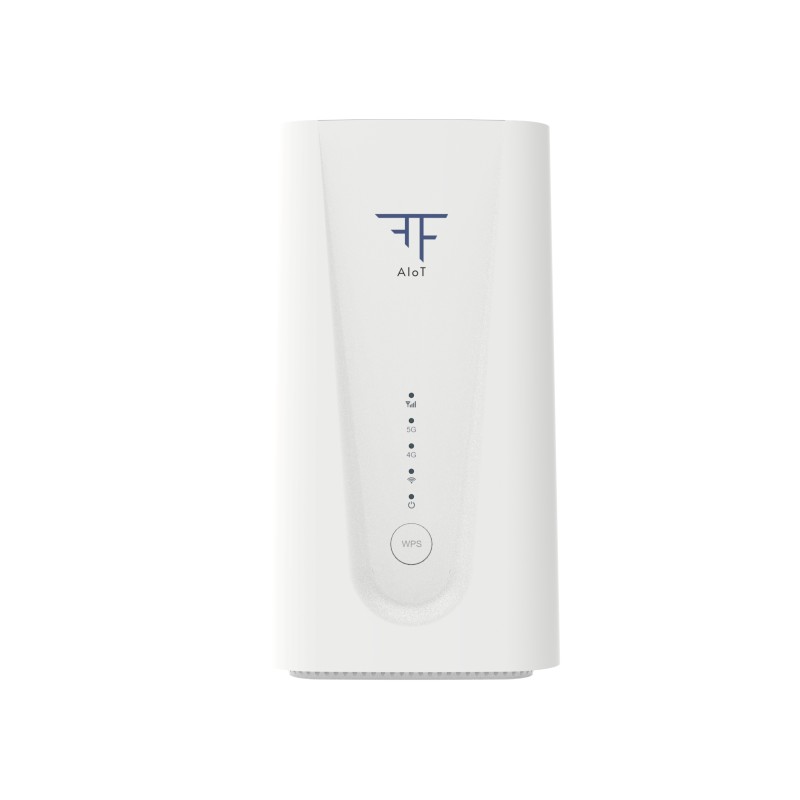

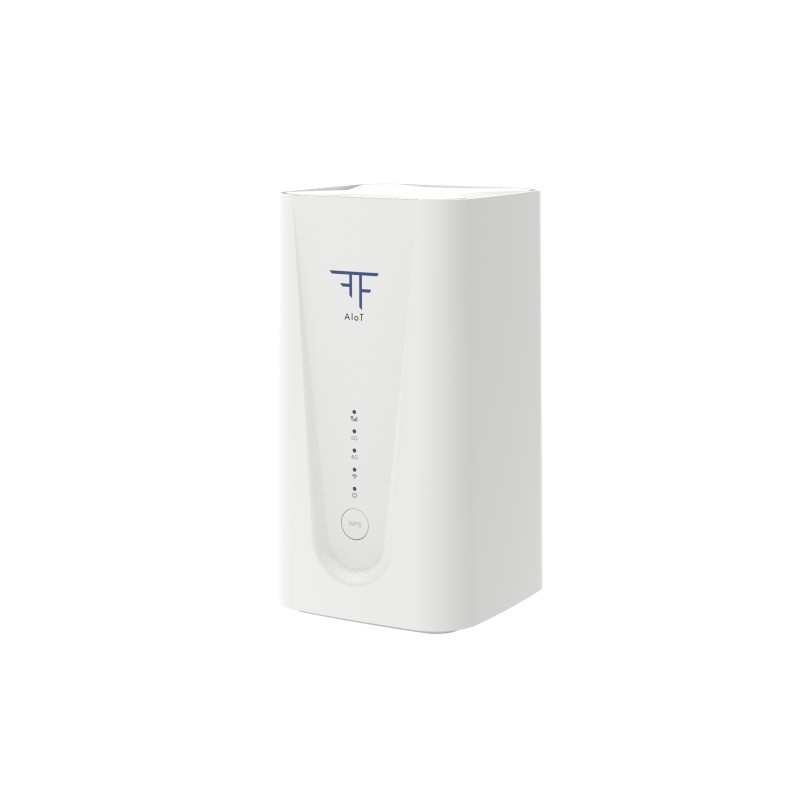

Compact and Stylish
Small, sleek design fits seamlessly into any indoor space without disrupting aesthetics.

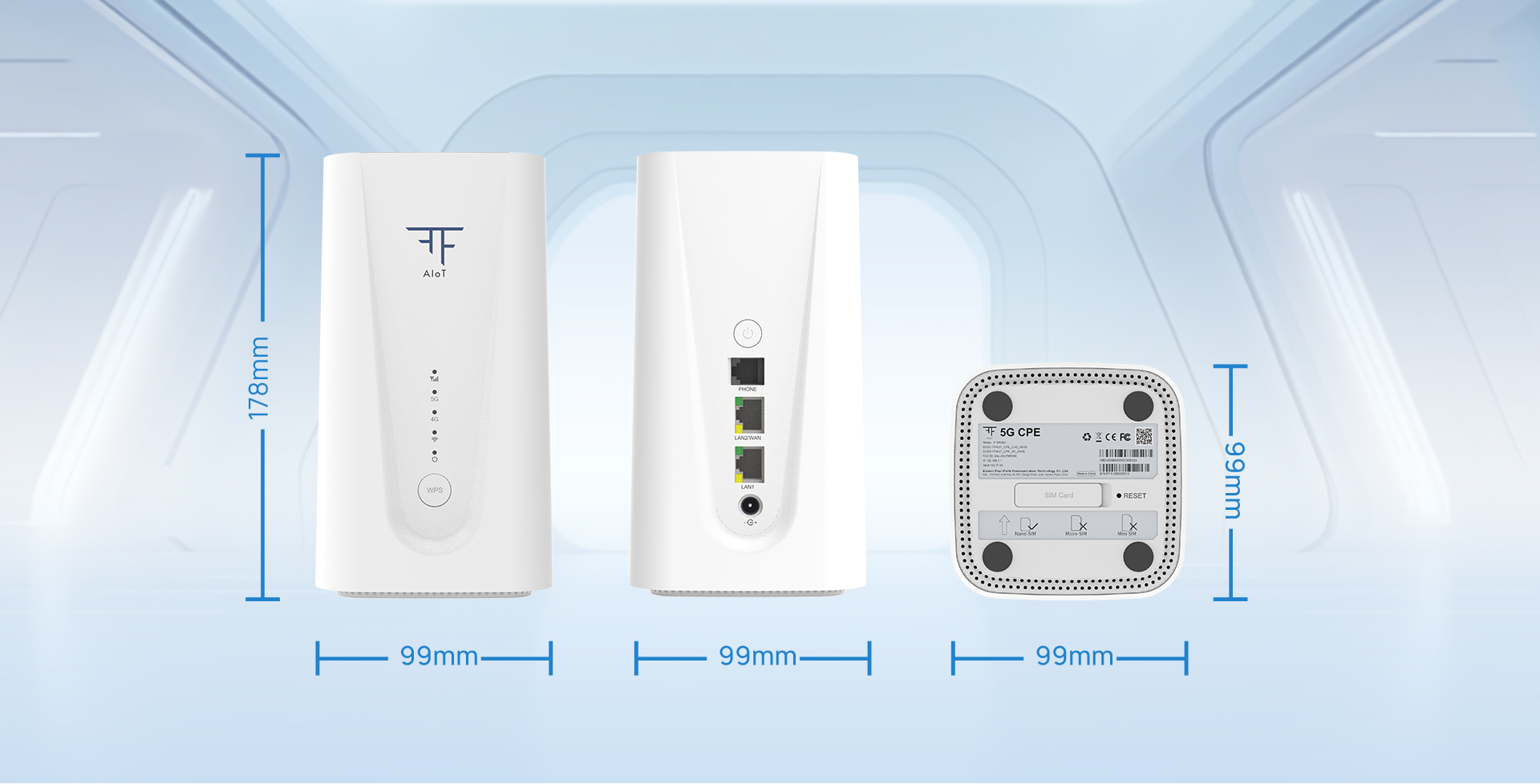

Product Dimension

| Product | F-NR300-NA | F-NR300-EAU | FNR300-02 | F-NR300 V2 |
| CPU | MTKT750, 2.0GHz, Quad-core | MTKT750, 2.0GHz, Quad-core | MT7621, 880MHz, Dual core | |
| DDR3 | 2GB | 1GB | 512MB | |
| Flash | 32GB | 1GB | 128MB | |
| Antenna | 4X4 MIMO | 2X2 MIMO | ||
| Ethernet Port | 1x2.5G WAN/LAN, 1x1G LAN | 1x2.5G WAN/LAN, 1x2.5G LAN | 1x1G WAN/LAN, 1x1G LAN | |
| WIFI | 2.4GHz, 5GHz | |||
| SIM Card | Single SIM | |||
| Shell | ABS Material | |||
| Dimension | 178x99x99mm | |||
| Operating Temperature | -20~+60ºC | |||
| Operating Humidity | 95% (No-condensing) | |||
| Cellular | |||||
| Frequency Band | F-NR300-NA | F-NR300-EAU | FNR300-02 | F-NR300 V2 | |
|
5G Sub-6: n2/ 5/ 7/ 12/ 14/ 25/ 30/ 41/ 48/ 66/ 71/ 77/ 78 LTE FDD: B2/ 4/ 5/ 7/ 12/ 13/ 14/ 17/ 25/ 26/ 29/ 30/ 66/ 71 LTE TDD: B41/ 46/ 48 WCDMA: B2/ 4/ 5 |
5G Sub6: n1/ 3/ 5/ 7/ 8/ 20/ 28(a&b)/ 38/ 40/ 41/ 77/ 78/ 79 LTE FDD: B1/ 3/ 5/ 7/ 8/ 18/ 19/ 20/ 26/ 28(a&b)/ 32 LTE TDD: B38/ 40/ 41/ 42/ 43/ 46 WCDMA: B1/ 5/ 8 |
5G NR NSA: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78 5G NR SA: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78 LTE-FDD: B1/3/5/7/8/20/28/32/71 LTE-TDD: B38/40/41/42/43 WCDMA: B1/5/8
|
5G Version | ||
|
5G NR NSA: n1/ n2/ n3/ n5/ n7/ n8/ n12/ n20/ n25/ n28/ n38/ n40/ n41/ n48*/ n66/ n71/ n77/ n78/ n79 5G NR SA: n1/ n2/ n3/ n5/ n7/ n8/ n12/ n20/ n25/ n28/ n38/ n40/ n41/ n48*/ n66/ n71/ n77/ n78/ n79 LTE-FDD: B1/ B2/ B3/ B4/ B5/ B7/ B8/ B9/ B12/ B13/ B14/ B17/ B18/ B19/ B20/ B25/ B26/ B28/ B29/ B30/ B32/ B66/ B71 LTE-TDD: B34/ B38/ 39/ B40/ B41/ B42/ B43/ B48 WCDMA: B1/ B2/ B3/ B4/ B5/ B6/ B8/ B19 |
|||||
| 5G Redcap Version | |||||
|
5G NR SA:N1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 77/ 78 LTE:B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 30/ 34/ 38/ 39/ 40/ 41/ 42/ 43/ 48/ 66/ 71 LTE-HPUE: B38/ 40/ 41/ 42/ 43 |
|||||
| Platform | MTK T750 | UNISOC V510/SDX62/SDX35/S5300 | |||
| 3GPP | Release 15 / Release 16 / Release 17 | ||||
| Theoretical Maximum Bandwidth |
5G Sub-6: DL: 4.67 Gbps,UL: 1.25 Gbps LTE: DL: 1.6 Gbps,UL: 211 Mbps |
5G SA Sub-6 GHz: DL: 4.67 Gbps,UL: 1.25 Gbps 5G NSA Sub-6 GHz: DL: 4.67 Gbps,UL: 836 Mbps LTE: DL: 1.6 Gbps ,UL: 200Mbps HSPA+: DL: 42Mbps ,UL: 5.76Mbps UMTS: DL: 384Kbps,UL: 384Kbps |
5G Version | ||
|
5G Sub-6: DL: 2.5 Gbps,UL: 600 Mbps LTE: DL: 1 Gbps,UL: 200 Mbps |
|||||
| 5G Redcap Version | |||||
|
5G SA Sub-6: DL: 223Mbps UL: 123Mbps LTE (256QAM): DL: 195Mbps UL: 105Mbps |
|||||
| Interfaces | |||||
| WAN/LAN | 1 x 2.5G Ethernet (RJ45), auto MDI/MDIX | 1 x 1G Ethernet (RJ45), auto MDI/MDIX | |||
| LAN | 1 x 1G Ethernet (RJ45), auto MDI/MDIX | 1 x 2.5G Ethernet (RJ45), auto MDI/MDIX | 1 x 1G Ethernet (RJ45), auto MDI/MDIX | ||
| Indicator | Signal, 5G, 4G, WIFI, Power | ||||

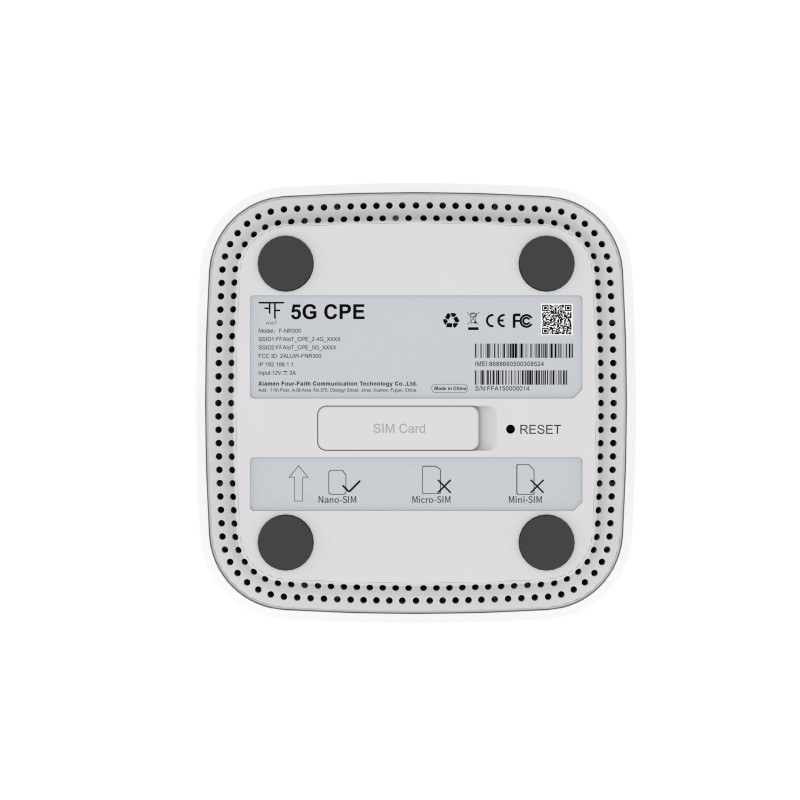

| SIM Card | 1 x Nano-SIM interface (Compatible with eSIM) | ||||
| USB | Type C | ||||
| Reset Button | Through this button, the parameter configuration can be restored to the factory value | ||||
| Interfaces | |||||
| CPU | MTK T750, 2.0GHz, Quad-core | MT7621, 880MHz, Dual core | |||
| DDR3 | 2GB | 1GB | 512MB | ||
| Flash | 32GB | 1GB | 128MB | ||
| WIFI | |||||
| WIFI Protocol | IEEE802.11 a/b/g/n/ac/ax | ||||
| Frequency | 2.4GHz, 5GHz | ||||
| Channel Bandwidth | 20MHz, 40MHz, 80MHz | ||||
| MESH Network | Support Four-Faith router and CPE to build the MESH network | ||||
| Theoretical Maximum Bandwidth |
2.4GHz 4x4MIMO 11ax: 1.146 Gbps 5GHz 4x4MIMO 11ax: 2.4 Gbps |
2.4GHz 2x2MIMO 11ax: 0.573 Gbps 5GHz 2x2MIMO 11ax: 1.2 Gbps |
|||
| Power Supply | |||||

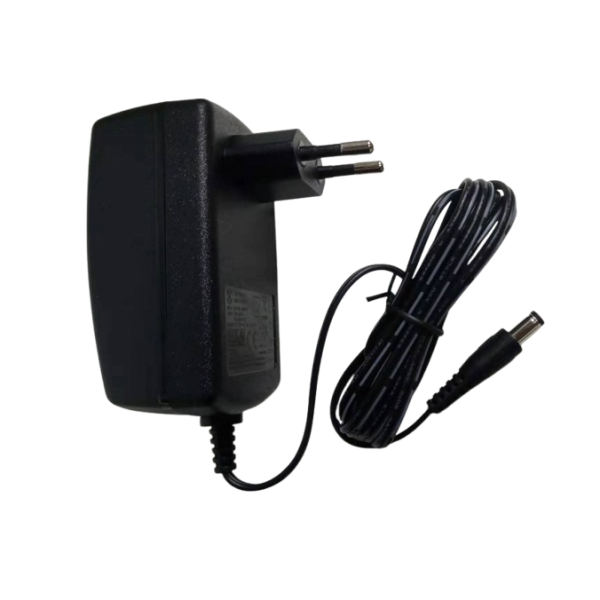

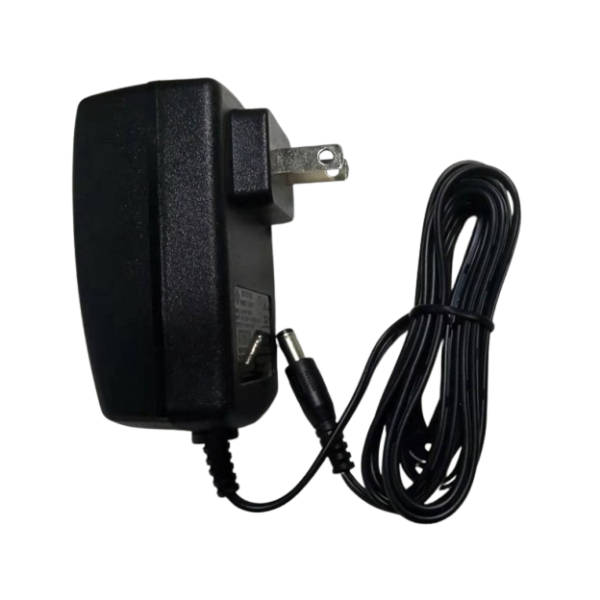

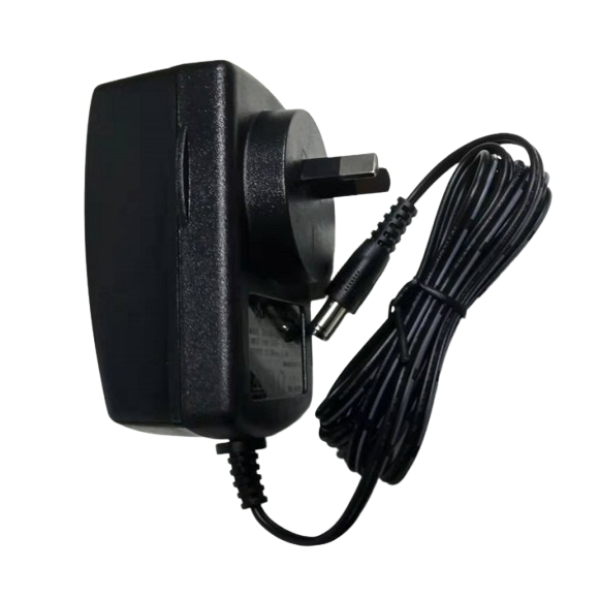

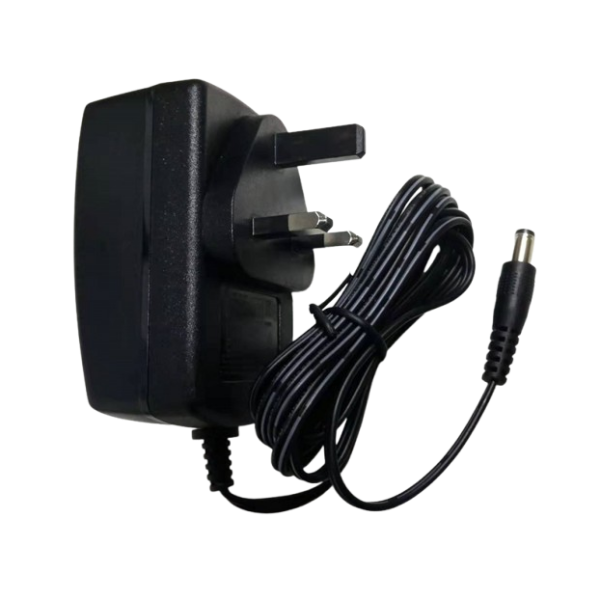

| Standard | DC 12V/3A | ||||
| Range | DC 9~24V | ||||
| Consumption | <1.2A (12V) | ||||
| Certification | |||||
| CE | Done | ||||
| UKCA | In Progress | ||||
| FCC | Done | ||||
| Physical Properties | |||||
| Shell | ABS Material | ||||
| Dimensions | 178x99x99mm | ||||
| Weight | 650g | 638g | |||
| Operating Temperature | -20~+60ºC | ||||
| Storage Temperature | -40~+85ºC | ||||
| Humidity | 95% (No-condensing) | ||||
| Software | |||||
| Operating System | Openwrt base | ||||
| Smart Wi-Fi Setup | Easy SSID, guest WiFi, and WPS setup with flexible security and channel options. | ||||
| Flexible MESH Networking | Web-enabled MESH setup with one controller and multiple sub nodes. | ||||
| Custom Mobile Settings | Easily manage 5G, APN, IP type, band lock, and SIM configurations. | ||||
| Data Usage Control | Monitor daily/monthly data and set limits with alerts or auto disconnection. | ||||
| Smart QoS Control | Limit bandwidth by network type with default or custom QoS policies. | ||||
| AT Command Support | Control via AT commands for SMS, dialing, and device info retrieval. | ||||
| Bandwidth Priority Setting | Set network priority between mobile and Ethernet via web interface. | ||||
